उत्पाद विवरण:
|
| उच्च परिशुद्धता: | ± 0.5% | तेज उत्तर: | <0.5μs |
|---|---|---|---|
| वाइड ऑपरेटिंग तापमान रेंज: | -40 ℃ से + 85 ℃ | बिजली की आपूर्ति की वोल्टेज: | ± 12V से ± 15V डीसी |
| क्वायल प्रतिरोध: | 30Ω | वजन: | 23.375g |
| प्रमुखता देना: | CSNP661 Current Sensor,Welding Equipment Current Sensor,Closed loop Current Sensor |
||

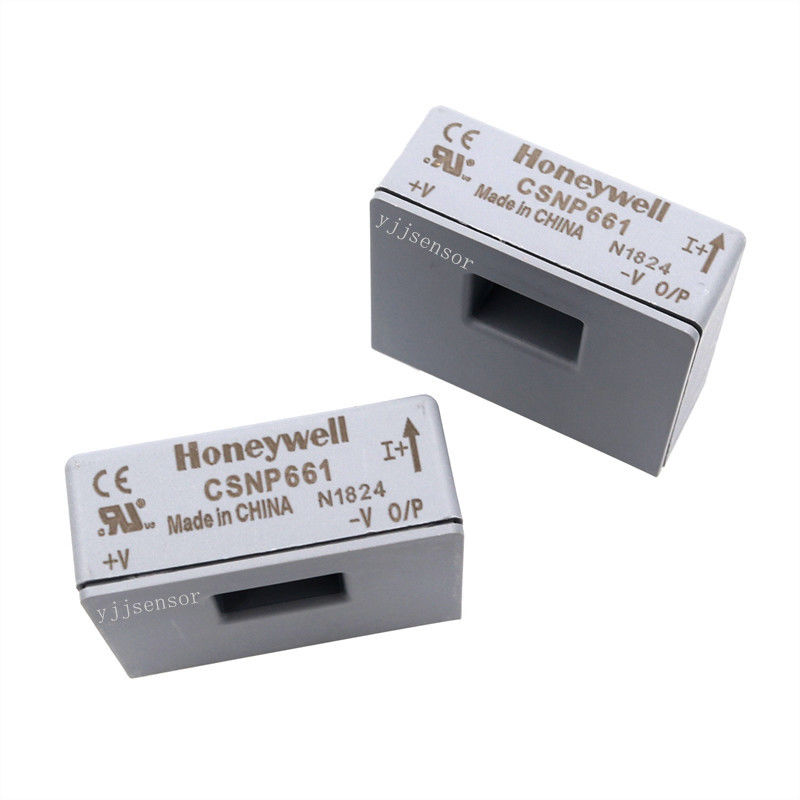

CSNP661 Closed-loop Current Sensor For Welding Equipment Feedback Control Systems
Basic Information:
Measurement Range:
Product Features:
Operating Conditions:
Physical Characteristics:
Application Fields:
| Basic Information | Product Model | CSNP661 |
| Manufacturer | Honeywell | |
| Sensor Type |
Closed - loop current sensor based on Hall effect and zero - flux balance method |
|
| Package Type | Module, single - pass through | |
| Mounting Type | PCB mount, through - hole | |
| Housing Material | Polycarbonate/ABS composite | |
| Number of Pins | 3 | |
| Measurement Range | Rated Current | 50A<sub>rms</sub> |
| Measurable Current Range | 0 - ±90A<sub>t</sub> (DC - AC Peak) | |
| Electrical Parameters | Measuring Resistance (at 70°C) |
70Ω - 195Ω with ±15V, at ±25A<sub>t </sub> Max |
| Analog Output Current (at 25A) | 50mA | |
| Turns Ratio | 1/1000 | |
| Accuracy (at 25°C) | Better than ±0.5%ln | |
| Supply Voltage | ±12 - 15V DC (±5%) | |
| Primary - Secondary Electrical Isolation | 3KV<sub>rms</sub>/50KHz/1min | |
| Dynamic Parameters | Zero - Offset Current (at 25°C) | Better than ±0.2mA |
| Offset Current Temperature Drift (0 - 70°C) | Better than ±0.30mA - ±0.50mA | |
| Linearity | Better than ±0.10% | |
| Response Time | Better than 500ns | |
| Bandwidth | DC - 150KHz | |
| dl/dT Following | Better than 100A/μs | |
| Temperature Parameters | Operating Temperature Range | - 40°C - 85°C |
| Storage Temperature Range | - 40°C - 90°C | |
| Other Parameters | Current Consumption | 10mA plus output current |
| Secondary Internal Resistance (+70°C) | 30Ω | |
| RoHS Compliance | Yes | |
| Reach SVHC | No SVHC |
