उत्पाद विवरण:
|
| वर्तमान मूल्यांकित: | 300ए | संवेदी वर्तमान सीमा: | ±600ए |
|---|---|---|---|
| बिजली की आपूर्ति की वोल्टेज: | 12 - 18 वी डीसी | सटीकता: | ± 0.5% |
| प्रतिक्रिया समय: | 0.5μs | बैंडविड्थ: | डीसी - 150kHz |
| प्रमुखता देना: | CSNJ481 Current Sensors,Hall Effect Current Sensor,Magnetoresistive Current Sensor |
||

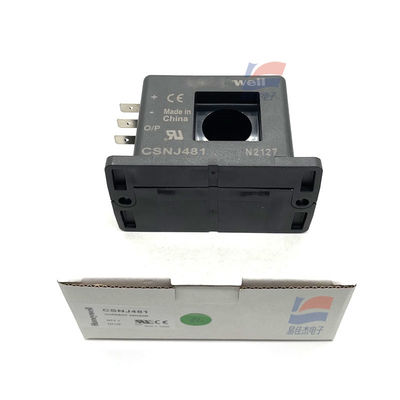

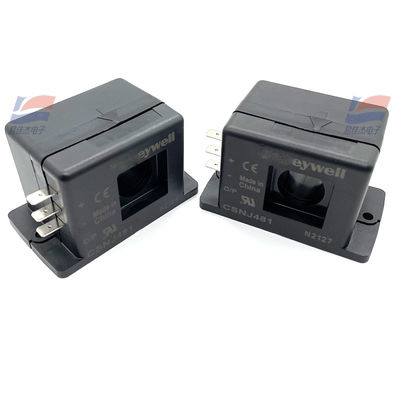

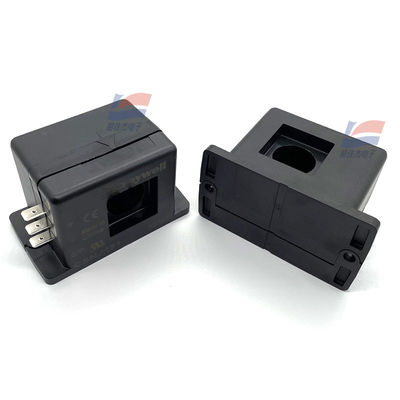

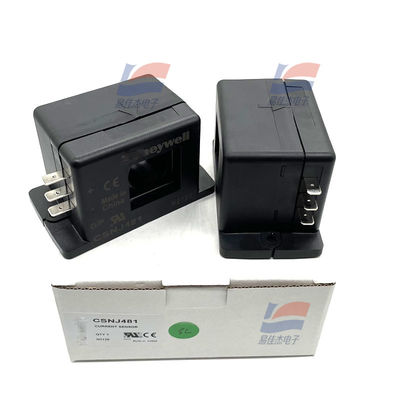

CSNJ481 Closed-loop Current Sensor
Electrical Parameters:
Performance Parameters:
Temperature Parameters:
Mechanical & Packaging Parameters:
Additional Parameters:
| Rated Current | 300A |
| Sensing Current Range | ±600A |
| Power Supply Voltage | 12 - 18V DC |
| Output Type | Ratio, Current |
| Accuracy | ±0.5% |
| Response Time | 0.5μs |
| Bandwidth | DC - 150kHz |
| Operating Temperature Range | -40°C to 85°C |
| Mounting Type | Through Hole |
| Package/Case | Module, Single Pass-Through |
| Number of Pins | 3 |
| Package Material | Plastic/Epoxy |
