उत्पाद विवरण:
|
| गैस का माप: | ऑक्सीजन (O2) | माप श्रेणी: | 0 - 25% वॉल्यूम |
|---|---|---|---|
| अधिकतम अधिभार: | 30% वॉल्यूम | संवेदनशीलता: | 3.8 - 5.7 यूए/वॉल्यूम% |
| शून्य-बिंदु बहाव: | <0.2% वॉल्यूम | संकल्प: | 0.1% वॉल्यूम ऑक्सीजन |
| प्रमुखता देना: | DTS-4O2 Oxygen Sensor,Electro Chemical Oxygen Sensor,Mining Electrochemical Oxygen Sensor |
||
Product Description:

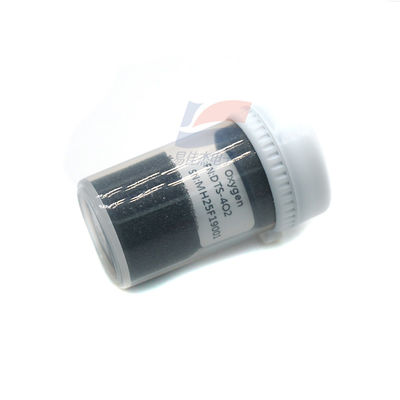

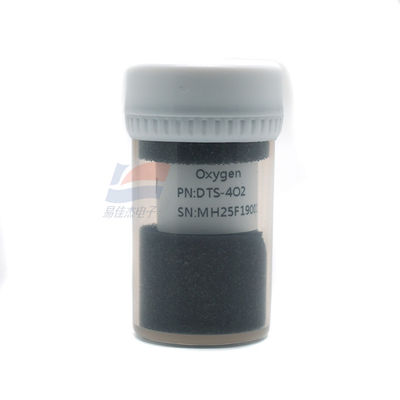

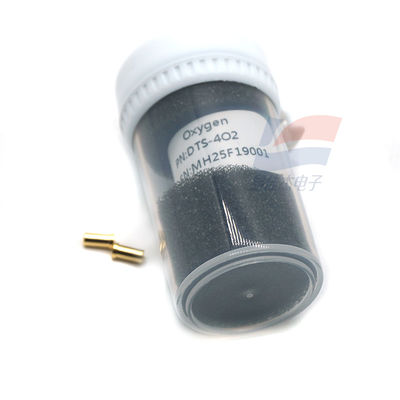

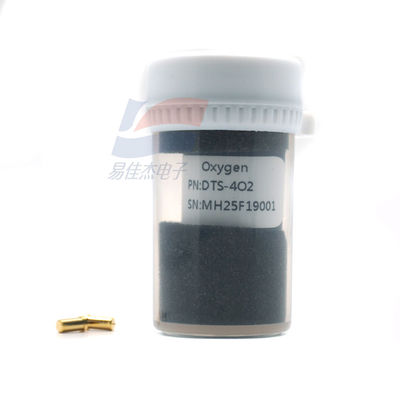

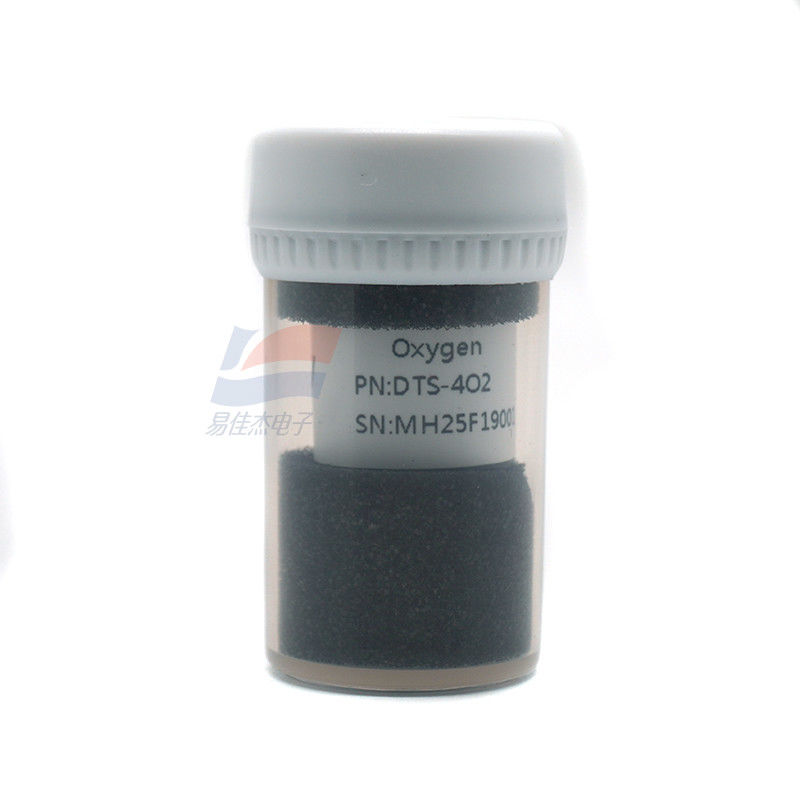

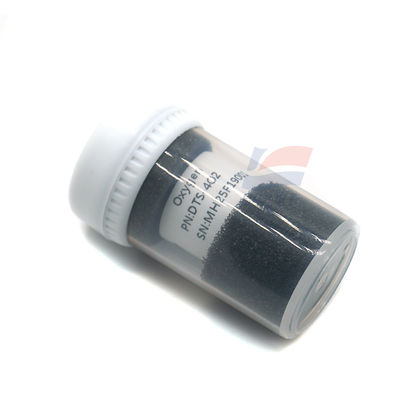

DTS-4O2 Industrial Electrochemical Oxygen Sensor Is Used In Mining Industry
Features:
DTS-4O2 oxygen sensor is a primary battery type sensor. It features high sensitivity, high accuracy, good stability, and fast response. It is widely used in various environments for oxygen gas monitoring, such as industrial oxygen monitoring, environmental protection oxygen monitoring, mine oxygen monitoring, and warehouse oxygen detection.
Performance parameters:
Measurement of gas: Oxygen (O2)
Measurement range: 0 - 25% VOL
Maximum overload: 30% VOL
Sensitivity: 3.8 - 5.7 uA/vol%
Zero-point drift: < 0.2% vol
Resolution: 0.1% VOL
Response time (t90): < 10 seconds
Output linearity: Linearity
Environment:
Operating temperature: -40 - +50℃
Working humidity: 15% - 95% RH (no condensation)
Work pressure range: 1 ± 0.1 standard atmospheres
Lifetime Warranty:
Long-term output drift: < 5% per year
Recommended storage conditions: In a sealed container at 0 - 20℃
Expected service life: 24 months in the air
Storage period: 6 months for original packaging
Warranty period: 12 months
Specifications:
| Operating temperature | -40 - +50℃ |
| Working humidity | 15% - 95% RH (no condensation) |
| Work pressure range | 1 ± 0.1 standard atmospheres |
| Long-term output drift | < 5% per year |
