उत्पाद विवरण:
|
| माप सीमा: | 0-100% O2 | सिग्नल आउटपुट: | 10-14 एमवी |
|---|---|---|---|
| प्रतिक्रिया समय 90%: | 13 सेकंड | पूर्ण पैमाने पर सटीकता: | + 1% |
| प्रमुखता देना: | PSR oxygen sensor high accuracy,gas sensor excellent stability,oxygen sensor model KE8 |
||

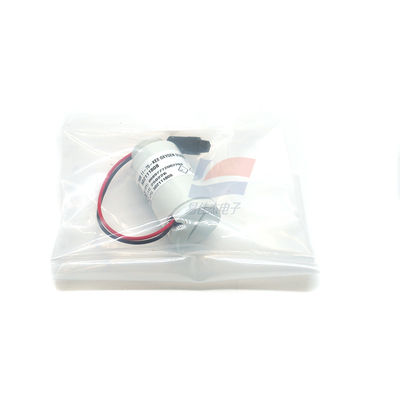

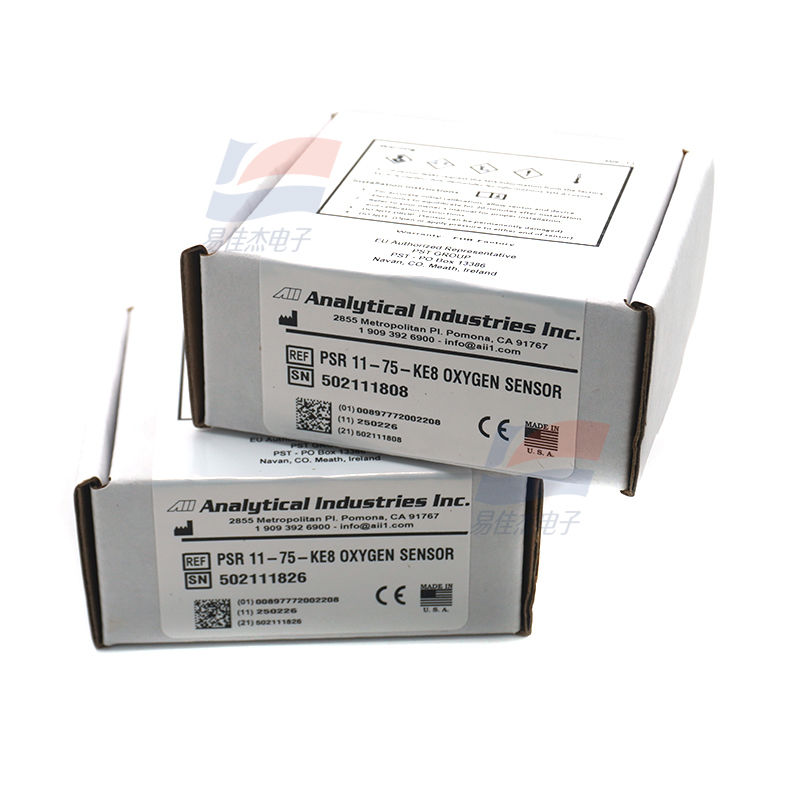

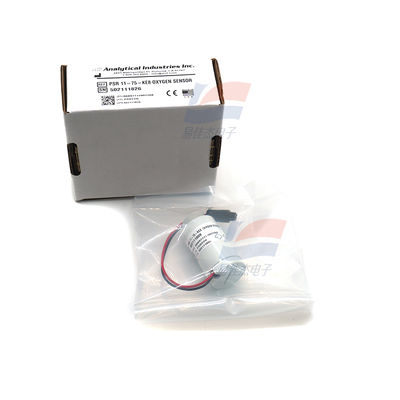

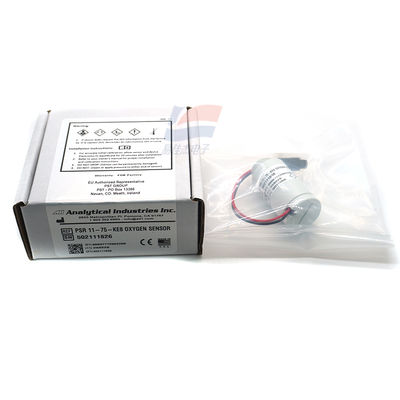

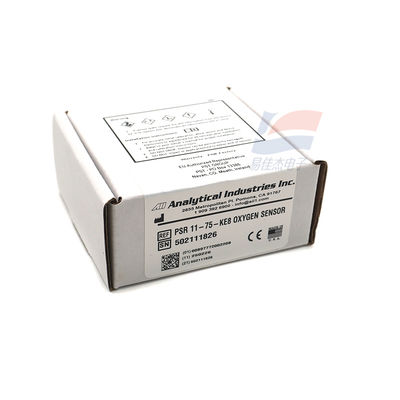

PSR 11-75-KE8 Oxygen Sensor Model Excellent Stability And Accuracy
Advanced galvanic type % oxygen sensors with excellent stability and accuracy under stringent applications. All % oxygen sensors are subjected to the most extensive stability test, output in air, 30” of water column pressure test and stability at 100% oxygen.
The widest range of oxygen sensors offered by Analytical Industries, Inc. are “Made in USA”
| Accuracy FS Over Operating Temperature | + 5% |
| Drift (% Signal Month) | < 1% |
| Humidity non-condensing | 0-99% RH |
| Temperature Coefficient | Compensated |
| Operating Temperature | 0-45°C |
| Operating Pressure Constant | 5-30 PSIG |
| Flow Rate | 1-10 LPM |
| Expected Life | 60 Months |
| Storage | 0 to 40°C |
| Warranty | 24 Months |
| Electrical Connections Winchester | 3 Pin Connector |
