उत्पाद विवरण:
|
| संवेदनशीलता: | 55 से 90 | प्रतिक्रिया समय T90S: | < 25 |
|---|---|---|---|
| जीरो करंट: | -4 से +2 | संकल्प: | <0.5 |
| प्रमुखता देना: | CO gas sensor industry standard,carbon monoxide sensor CO-AM,standard size CO gas detector |
||

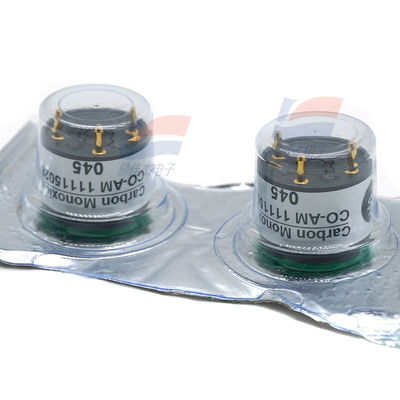

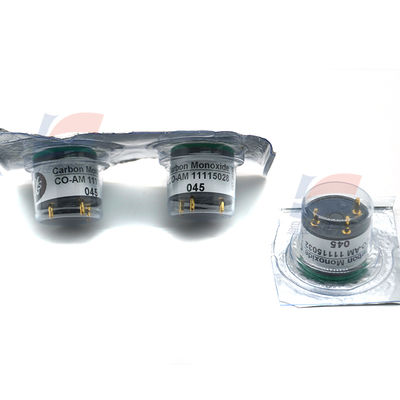

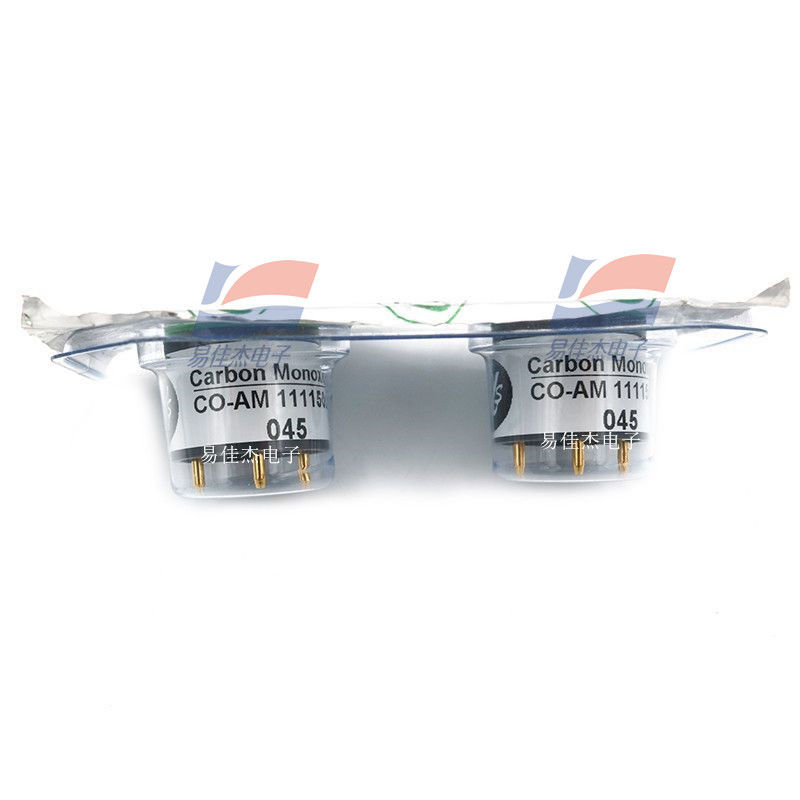

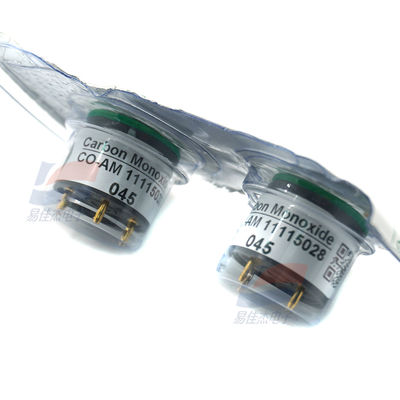

CO-AM CO Gas Carbon Monoxide Sensors Industry Standard Size
CO-AM Carbon Monoxide Sensor sizes: 20mm diameter, the industry standard size for portable gas detectors
The Alphasense family of CO sensors have proven themselves in the field with long term stability and reliable operation, well beyond the two-year warranty, using our patented electrode technology.
• Range: 5,000 ppm CO limit of performance warranty
• Sensitivity: 55 to 90 nAppm in 400ppm CO
• Response time t90: < 25 (s) from zero to 400ppm CO
• Resolution: < 0.5 RMS noise (ppm equivalent)
• Temperature range: -30 to 50°C
• Pressure range: 80 to 120kPa
• Humidity range: 15 to 90% rh continuous
• Weight: < 6 g
Datasheet:
| Zero drift | < 0.2ppm |
| Sensitivity drift | < 8% |
| Operating life | > 24 |
| Sensitivity @ -20°C | 63 to 88 |
| Sensitivity @ 50°C | 102 to 115 |
| Zero @ -20°C | < ± 3 |
| Zero @ 50°C | < ± 8 |
