उत्पाद विवरण:
|
| भाग की स्थिति: | अप्रचलित | आवेदन: | बोर्ड माउंट |
|---|---|---|---|
| दबाव प्रकार: | अंतर | आपरेटिंग दबाव: | 0.36psi (2.49kpa) |
| प्रमुखता देना: | board mount silicon pressure sensor,differential uncompensated pressure sensor,electronic differential pressure sensor |
||

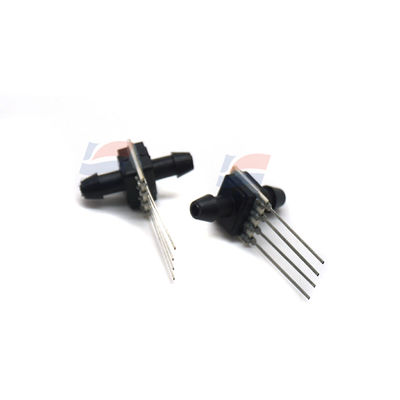

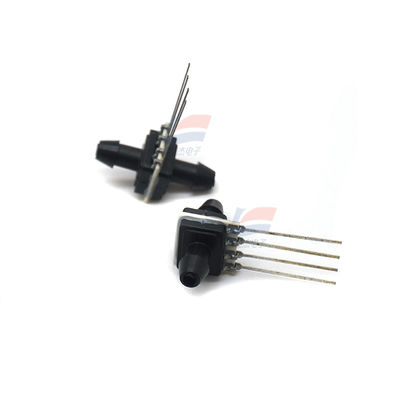

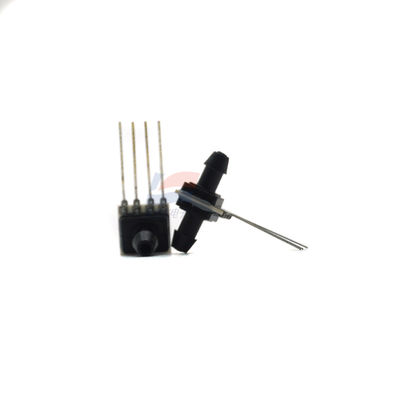

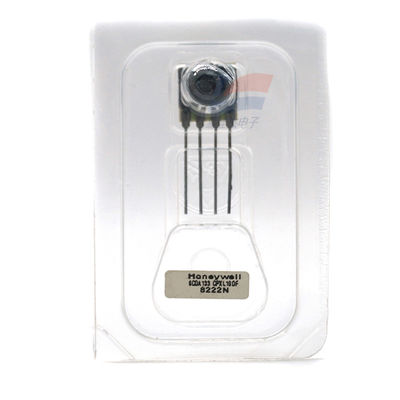

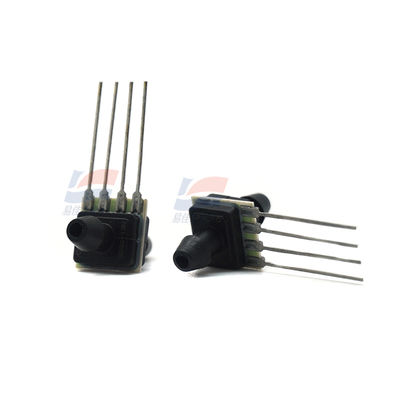

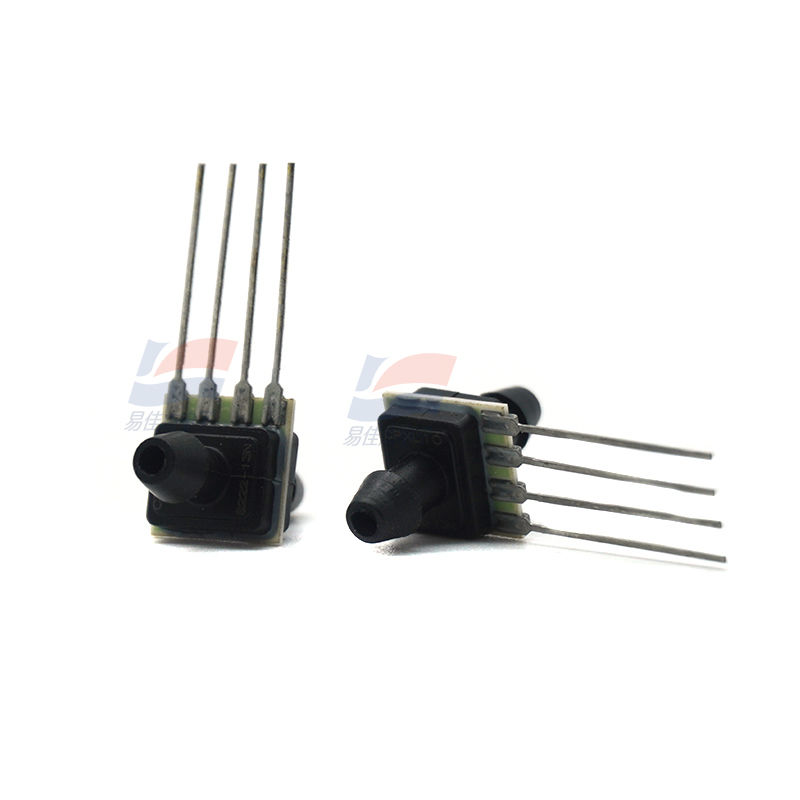

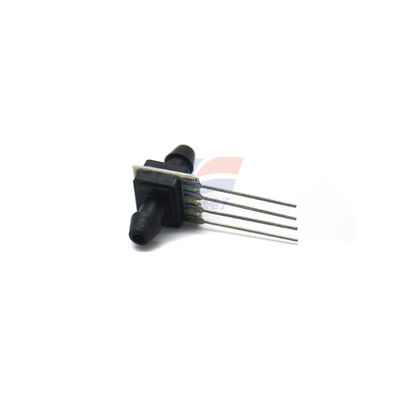

CPXL10DF Board Mount Silicon Pressure Sensors Differential Uncompensated
The CPX/CPXL and the CPC/CPCL Series sensors integrate silicon micromachined sensing technology, temperature
compensation, and calibration in a complete family of low cost packages. This series offers the most cost-effective solution for
design requirements.
These piezoresistive pressure sensors use micromachined silicon chips mounted on a ceramic and protected with a plastic
cap. Several tube arrangements with nylon housings are available for various pressure applications.
FEATURES
• Low cost, small size
• Temperature compensated
• Zero and span calibrated
• Millivolt output
• Differential, gage and absolute pressure
• Constant voltage excitation
• High impedance - low current
POTENTIAL APPLICATIONS
• Medical applications
• Applications requiring small size
• Applications requiring vacuum and positive
• Pressure reference, or both
Specification:
| Output Type | Wheatstone Bridge |
| Output | 0 mV ~ 78.5 mV (5V) |
| Accuracy | ±2% |
| Voltage - Supply | 3V ~ 12V |
| Port Size Male | - 0.16" (4.06mm) Tube, Dual |
| Operating Temperature | -25°C ~ 85°C |
| Package / Case | 4-SIP Module |
