उत्पाद विवरण:
|
| वर्तमान मूल्यांकित: | 25 डिग्री सेल्सियस पर 300 ए आरएमएस नाममात्र | संवेदी वर्तमान सीमा: | ±900ए |
|---|---|---|---|
| बिजली की आपूर्ति की वोल्टेज: | ± 15VDC ± 5% | बिजली की आपूर्ति वर्तमान: | विशिष्ट 17ma |
| सटीकता: | ±2% | आवृति सीमा: | डीसी से 50kHz |
| प्रमुखता देना: | open-loop hall effect current sensor,current sensor for frequency converters,hall effect overcurrent protection sensor |
||

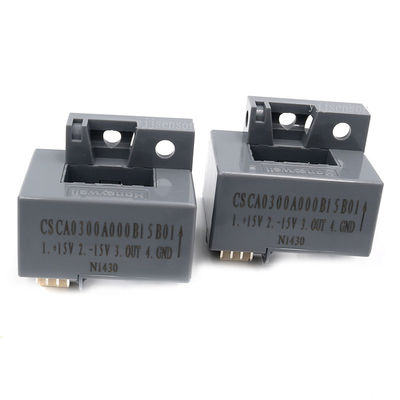

CSCA0300A000B15B01 Open-Loop Hall Effect Current Sensor For Frequency Converters Overcurrent Protection
Working Principle:
Based on the Hall effect principle, when current flows through the primary conductor, it generates a rotating magnetic field around the conductor. This magnetic field is collected by a magnetic core made of magnetosensitive material and concentrated in the air gap of the core. The Hall Effect Device (HED) is positioned in the air gap, and its output is proportional to the amplitude and phase of the primary current. After gain and offset calibration, the sensor provides a preset output sensitivity relative to the primary current.
Application Fields:
Suitable for frequency converters, overcurrent protection, Uninterruptible Power Supplies (UPS), telecommunication power supplies, current feedback control systems, robotics, and other fields.
| Rated Current | 300A RMS nominal at 25°C |
| Sensing Current Range | ±900A |
| Power Supply Voltage | ±15VDC±5% |
| Power Supply Current | Typical 17mA |
| Output Type | Voltage Output |
| Accuracy | ±2% |
| Linearity | <±1% |
| Frequency Range | DC to 50kHz |
| Response Time | 3µs to 7µs |
| Zero Current Offset | <±20mV |
| Offset Thermal Drift | <±3mV/°C at IpN=50A; <±1.5mV/°C at IpN=100A to 600A |
| Housing Material | PBT Polyester |
| Height | 29mm |
| Length | 40mm |
| Width | 35mm |
| Operating Temperature | -10°C to 80°C |
| Storage Temperature | -25°C to 85°C |
