उत्पाद विवरण:
|
| आयाम: | 6.2 × 6.4 मिमी | दबाव माप सीमा: | 10 - 1100 mbar (1 kPa - 110 kPa) |
|---|---|---|---|
| संकल्प: | 0.1 mbar | एडीसी संकल्प: | 16 - बिट |
| इंटरफेस: | 3 - वायर सीरियल इंटरफ़ेस | सिस्टम की घड़ी: | 32.768 किलोहर्ट्ज़ |
| प्रमुखता देना: | MS5540CM mobile altimeter sensor,barometric pressure sensor for meteorological systems,electronic pressure sensor for altimeters |
||

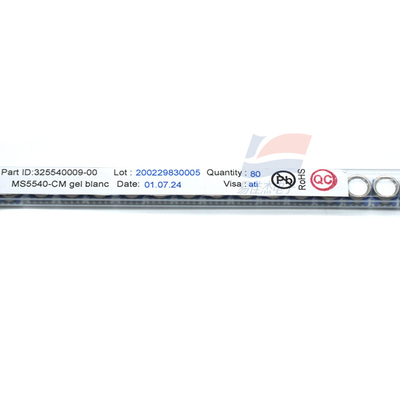

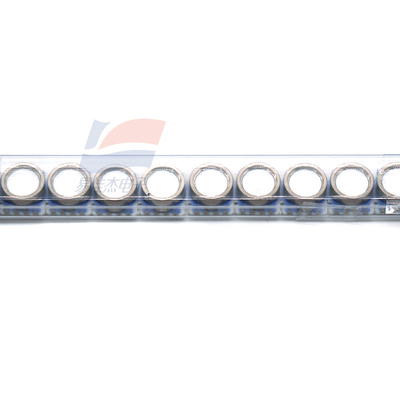

MS5540CM Pressure Sensor For Mobile Altimeters Barometers Meteorological Monitoring systems
Protection Features:
Compatibility:
Environmental Compliance:
Lead-free and RoHS compliant.
Typical Applications
| Sensor Type | Absolute - pressure sensor |
| Dimensions | 6.2×6.4 mm |
| Pressure Measurement Range | 10 - 1100 mbar (1 kPa - 110 kPa) |
| Resolution | 0.1 mbar |
| ADC Resolution | 16 - bit |
| Output | 16 - bit digital output, providing digital pressure and temperature values |
| Interface | 3 - wire serial interface |
| System Clock | 32.768 kHz |
| Operating Temperature Range | - 40℃ to 85℃ |
| Supply Voltage | 2.2 - 3.6 V |
| Operating Current | < 5 μA |
| Standby Current | < 0.1 μA |
