उत्पाद विवरण:
|
| वोल्टेज आपूर्ति: | 0.2-35V | आउटपुट वोल्टेज: | 6वी |
|---|---|---|---|
| आउटपुट करंट: | 10mA | अधिकतम जंक्शन तापमान, TJMAX: | 150 ℃ |
| प्रमुखता देना: | LM35DZ precision temperature sensor,HVAC temperature sensor LM35DZ,medical grade temperature sensor |
||

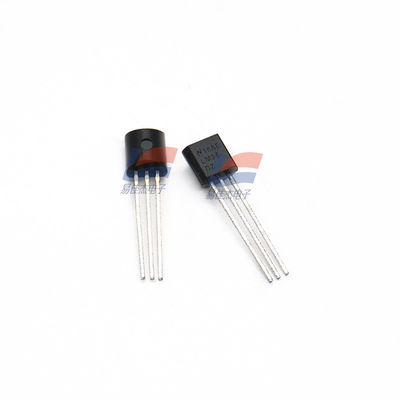

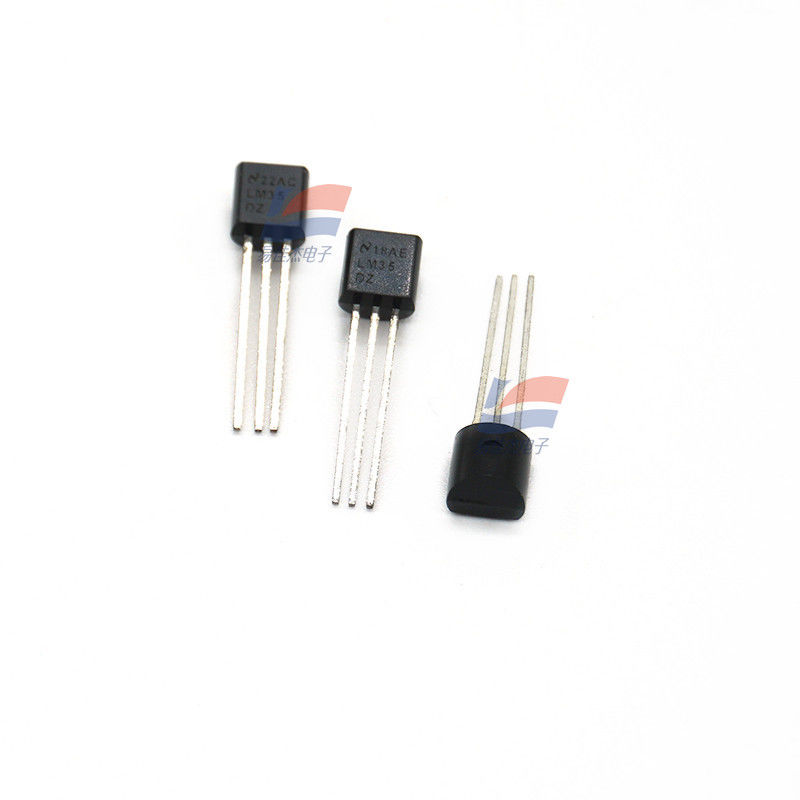

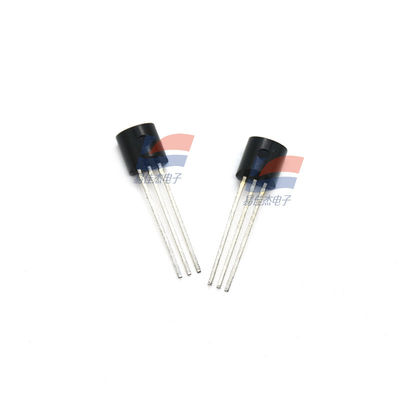

LM35DZ Temperature Sensors Precision Centigrade HVAC Medical
Features
1• Calibrated Directly in Celsius (Centigrade)
• Linear + 10-mV/°C Scale Factor
• 0.5°C Ensured Accuracy (at 25°C)
• Rated for Full −55°C to 150°C Range
• Suitable for Remote Applications
• Low-Cost Due to Wafer-Level Trimming
• Operates From 4 V to 30 V
• Less Than 60-μA Current Drain
• Low Self-Heating, 0.08°C in Still Air
• Non-Linearity Only ±¼°C Typical
• Low-Impedance Output, 0.1 Ω for 1-mA Load
Applications
• Power Supplies
• Battery Management
• HVAC
• Appliances
| Specified operating temperature | –55~150℃ |
| Supply Voltage | 4-30V |
