उत्पाद विवरण:
|
| माप सीमा: | -500 ～ 500pa | शून्य बिंदु सटीकता: | 0.3pA |
|---|---|---|---|
| सटीकता पठन: | × 3% | शून्य बिंदु पुनरावृत्ति: | 0.1pa |
| प्रमुखता देना: | digital differential pressure sensor,small size pressure sensor,high precision pressure sensor |
||

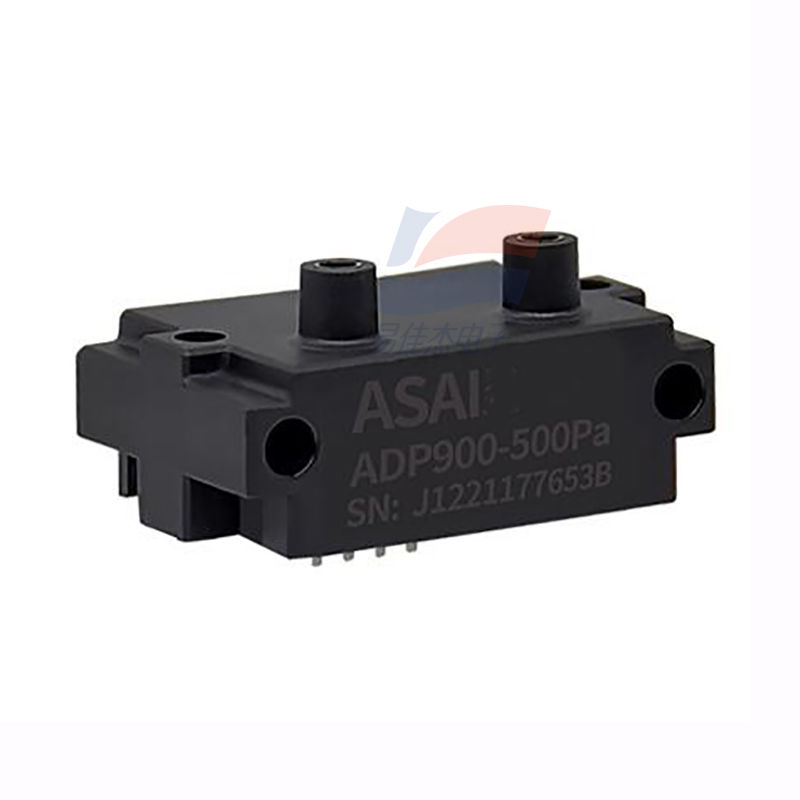

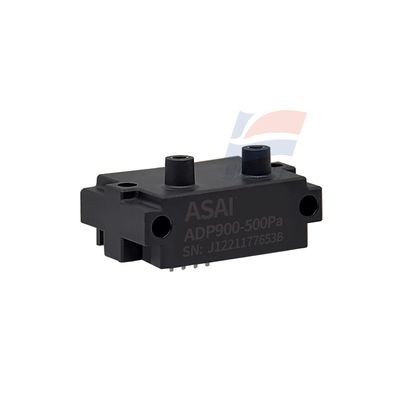

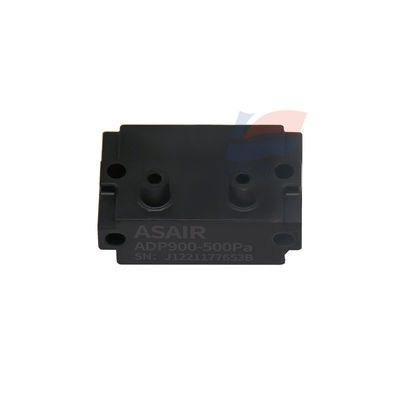

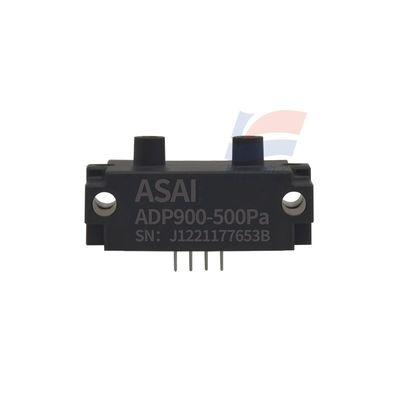

ADP900-500PA Digital Differential Pressure Sensor Small Size High Precision
ADP900 is a digital differential pressure sensor designed for high-precision differential pressure measurement with a response time of 10ms. The chip inside the sensor can measure the pressure difference of air, nitrogen and oxygen through the influence of airflow on the temperature field distribution around it. It has the characteristics of high precision, no drift and strong stability. At the same time, it has excellent performance in sensitivity, shock resistance and temperature change. The ADP900 sensor has a standard I2C interface, simple communication method, and can be easily connected to a microprocessor.
Digital differential pressure sensor
* Excellent repeatability, no drift
* Built-in temperature compensation
* High reliability and long-term stability
* High signal-to-noise ratio
* Built-in MCU with high processing power
* Short response time and fast measurement speed
* Small size and light weight
Datasheet
| Zero point repeatability | 0.1Pa |
| Repeatability Reading | × 0.5% |
| Annual offset | <0.05Pa |
| Response time | 10ms |
| Calibration gas | Air |
| Fluid compatibility | Air, nitrogen, oxygen (non-condensing state) |
| Temperature compensation range | 0～50°C |
