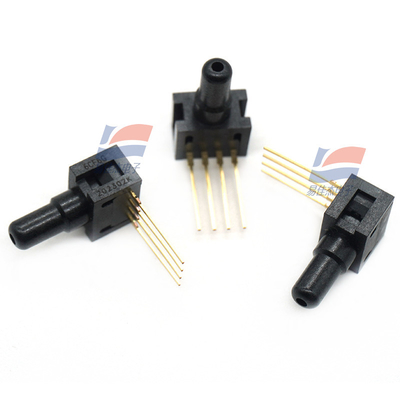

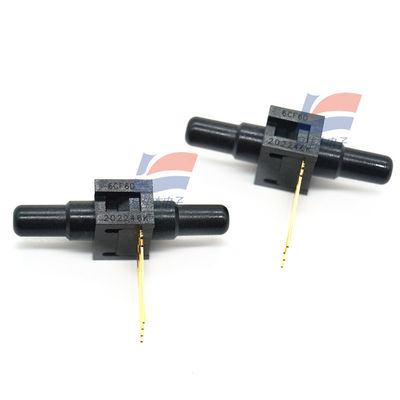

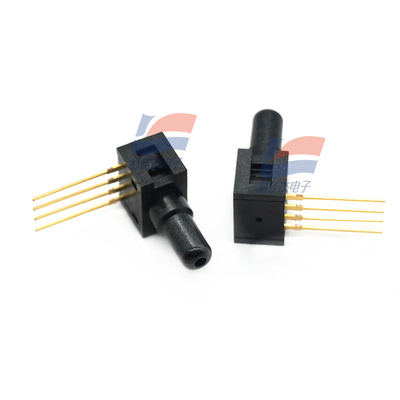

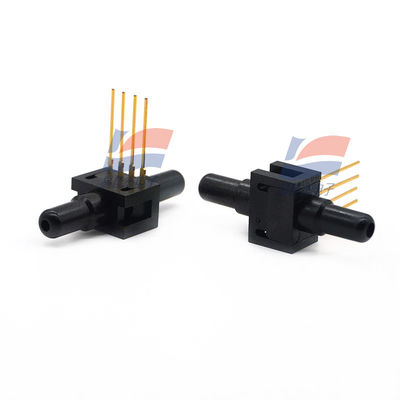

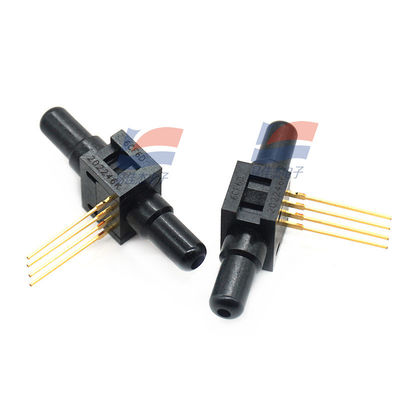

26PCCFA6D 26PCCFA6G Pressure Sensor For Filter Monitoring Equipment Robotics

                               26PCCFA6D 26PCCFA6G Pressure Sensor For Filter Monitoring Equipment Robotics

Uses:

It can be applied to gas chromatography, breath alcohol testers, spirometers, dental operating chairs, hemodialysis systems, irrigation equipment, pipeline pressure measurement, oxygen and nitrogen gas distribution in hospitals, water control valves, filter monitoring equipment, robotics, pressure valves, leak detection, air compressors, and other fields. It is especially suitable for automotive engine management systems and medical - related applications.

Characteristics:

• Wide - range measurement: It can measure vacuum or positive pressure, with a measurement range covering from 1 psi to 250 psi, and can perform absolute pressure, differential pressure, and gauge pressure measurements.
• Good temperature performance: The operating temperature range is - 40℃ to 85℃, and it can still operate after being exposed to frozen conditions. It has temperature compensation and calibration functions, which can maintain stable performance under temperature changes.
• Diverse port configurations: It has a variety of gauge port configurations and port styles, which can be quickly modified according to special needs, and is suitable for various application scenarios.
• Compact and cost - effective: It is a miniature pressure sensor, which is small in size, suitable for PCB mounting, and has a cost - effective advantage.
• High - precision measurement: The measurement accuracy can reach ±0.5%, which can provide accurate pressure measurement results.
• Reliable sensing principle: It adopts the piezoresistive measurement principle, and the internal four - element Wheatstone bridge structure can convert the pressure change into a voltage change with high sensitivity and reliability.
