उत्पाद विवरण:
|
| Output voltage: | 8.5 - 14 mV (in air) | Measurement range: | 0 - 100% |
|---|---|---|---|
| Response time: | < 10 seconds | Linearity: | Full-scale linearity |
| Load resistance: | > 10 kQ | ||
| प्रमुखता देना: | high-pressure diving oxygen sensor,oxygen concentration sensor for diving,high-pressure oxygen chamber sensor |
||
Product Description:

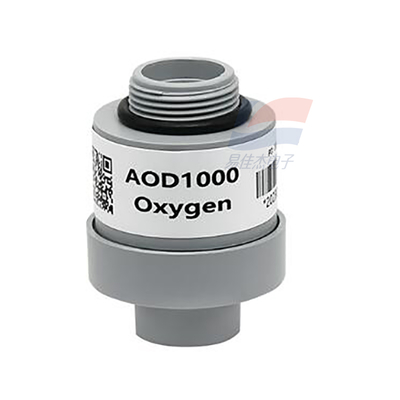

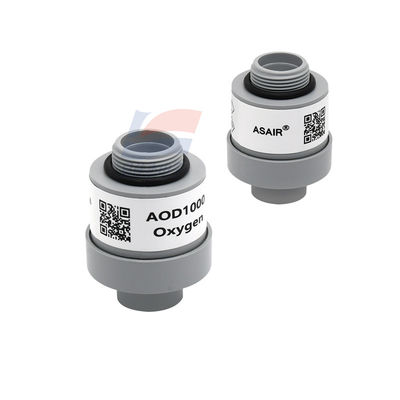

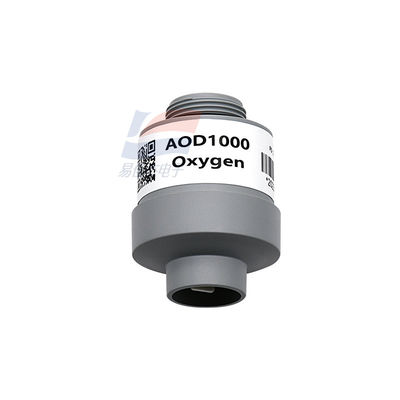

YJJ AOD1000 High-Pressure Diving Oxygen Sensor Oxygen Cell Is Used For Detecting Oxygen Concentration In High-Pressure Oxygen Chambers
Features:
AOD1000 high-pressure oxygen sensor is a sensor interface model with a MOLEX 3-pin connector that can be used in high-pressure environments. Its structure and composition are different from those of oxygen sensors used under normal pressure, and it can withstand much higher air pressure than ordinary oxygen sensors.
The AOD1000 high-pressure oxygen sensor does not require an external power supply during operation. It has undergone professional and accurate product calibration and temperature compensation upon leaving the factory. It is widely used for oxygen monitoring in high-pressure equipment, such as high-pressure oxygen chambers, ship inspection systems, and oil tankers.
Model: AOD1000
Working principle: Voltage divider electrochemistry
Output voltage: 8.5 - 14 mV (in air)
Measurement range: 0 - 100%
Response time: < 10 seconds
Linearity: Full-scale linearity
Temperature compensation: < 2%0, at 0 - 50°C
Load resistance: > 10 kQ

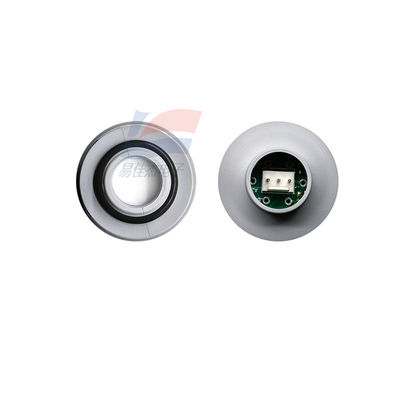

Interface: Molex 3-pin connector (2.54mm)
Shell material: Gray ABS
Weight: Approximately 25g
Operating temperature range: 0 - 45°C
Operating pressure range: 0.8 - 7.0 bar
Operating humidity range: 0 - 99%RH (no condensation)
Recommended storage temperature: 0 - 25°C
Expected lifespan: 42 months
Warranty period: 12 months
Specifications:
| Product model | AOD1000 |
| Maximum Operating Temperature | +85 °C |
| Atmospheric pressure range | < 2% FS |
| Weight | Approximately 25g |
