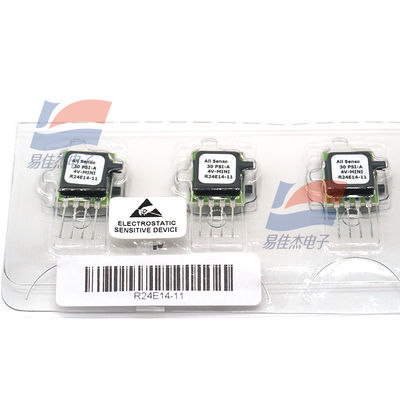

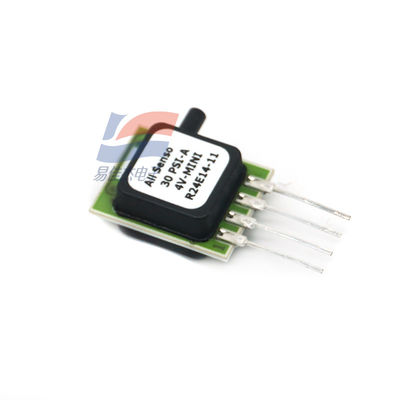

YJJ 30 PSI-A-4V-MINI Board Interface Pressure Sensor With Absolute Pressure Of 200Kpa Suitable For Industrial Environments

प्रमाणन
चीन ShenzhenYijiajie Electronic Co., Ltd. प्रमाणपत्र
चीन ShenzhenYijiajie Electronic Co., Ltd. प्रमाणपत्र
मैं अब ऑनलाइन चैट कर रहा हूँ

YJJ 30 PSI-A-4V-MINI Board Interface Pressure Sensor With Absolute Pressure Of 200Kpa Suitable For Industrial Environments

YJJ 30 PSI-A-4V-MINI Board Interface Pressure Sensor With Absolute Pressure Of 200Kpa Suitable For Industrial Environments
YJJ 30 PSI-A-4V-MINI Board Interface Pressure Sensor With Absolute Pressure Of 200Kpa Suitable For Industrial Environments YJJ 30 PSI-A-4V-MINI Board Interface Pressure Sensor With Absolute Pressure Of 200Kpa Suitable For Industrial Environments YJJ 30 PSI-A-4V-MINI Board Interface Pressure Sensor With Absolute Pressure Of 200Kpa Suitable For Industrial Environments YJJ 30 PSI-A-4V-MINI Board Interface Pressure Sensor With Absolute Pressure Of 200Kpa Suitable For Industrial Environments

बड़ी छवि :  YJJ 30 PSI-A-4V-MINI Board Interface Pressure Sensor With Absolute Pressure Of 200Kpa Suitable For Industrial Environments

उत्पाद विवरण:
Place of Origin: USA
ब्रांड नाम: YJJ
Model Number: 5 INCH-D1-4V-MINI
भुगतान & नौवहन नियमों:
Minimum Order Quantity: 1
मूल्य: विनिमय योग्य
Packaging Details: Palletized
Delivery Time: 5 to 8 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1500

YJJ 30 PSI-A-4V-MINI Board Interface Pressure Sensor With Absolute Pressure Of 200Kpa Suitable For Industrial Environments

वर्णन
Working pressure: 0 psi to 30 psi Accuracy: 0.5 %
Output type: Analog Installation style: Through Hole
Port type: Dual Radial Barbed Package / Housing: Miniature
प्रमुखता देना:

YJJ 30 PSI pressure sensor

,

industrial absolute pressure sensor

,

200Kpa board interface sensor

Product Description:

YJJ 30 PSI-A-4V-MINI Board Interface Pressure Sensor With Absolute Pressure Of 200Kpa Suitable For Industrial Environments



Features:

Micro pressure sensor amplification line is based on the technologies developed in the pressure sensor industry over the years. This model provides a ratio of 4 volt output with superior output characteristics. The sensor housing is specifically designed to reduce parasitic stress and strain caused by the packaging. Additionally, this sensor adopts a silicon micro-mechanical stress concentration enhancement structure to provide a very linear output for measuring pressure. These calibrated and temperature-compensated sensors offer precise and stable outputs over a wide temperature range. Each sensor is internally compensated using ASIC compensation technology. This series of products is suitable for non-corrosive, non-ion working fluids such as air and dry gas. The output of the equipment is proportional to the supply voltage within the voltage range of 4.5 to 5.5 volts.

Pressure type: Absolute

Working pressure: 0 psi to 30 psi

Accuracy: 0.5 %

Output type: Analog

Installation style: Through Hole

Port type: Dual Radial Barbed

Package / Housing: Miniature

Minimum operating temperature: -25°C

Maximum operating temperature: +85°C

Series: SAMP

Trademark: Amphenol All Sensors

Product type: Board Mount Pressure Sensors 10

Subcategory: Sensors

Maximum power supply voltage: 5 V

Unit weight: 7.152 g



Specifications:

Minimum Operating Temperature -25 °C
Maximum Operating Temperature +85 °C
Series SAMP
Accuracy 5%



YJJ 30 PSI-A-4V-MINI Board Interface Pressure Sensor With Absolute Pressure Of 200Kpa Suitable For Industrial Environments 0
