उत्पाद विवरण:
|
| संचालन सिद्धांत: | 3-इलेक्ट्रोड इलेक्ट्रोकेमिकल | नाममात्र रेंज: | 0 - 1000 पीपीएम |
|---|---|---|---|
| अधिकतम अधिभार: | 2000 पीपीएम | इनबोर्ड फ़िल्टर: | सीओ को हटाने के लिए |
| प्रमुखता देना: | H2 gas sensor for medical use,high selective hydrogen gas detector,CA-1000 H2 detection sensor |
||

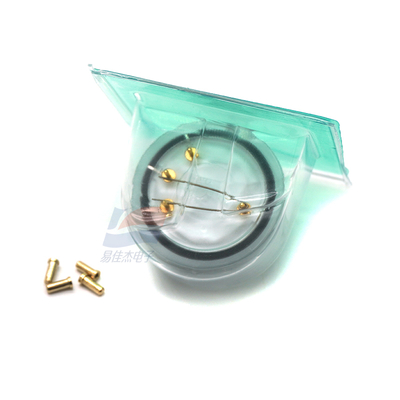

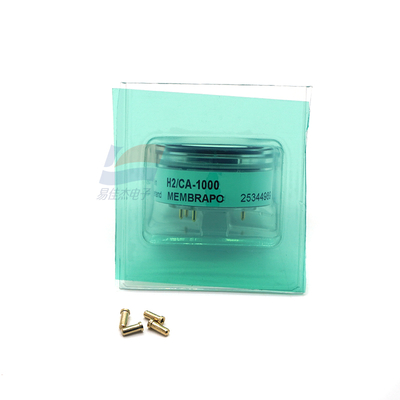

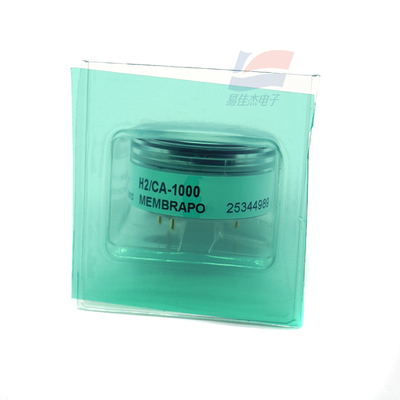

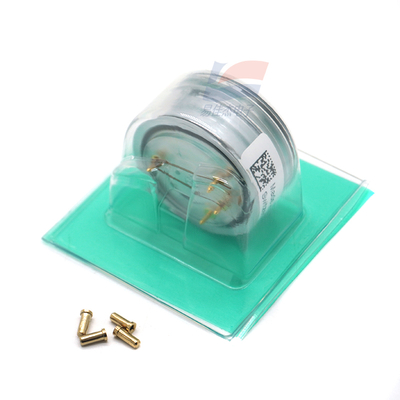

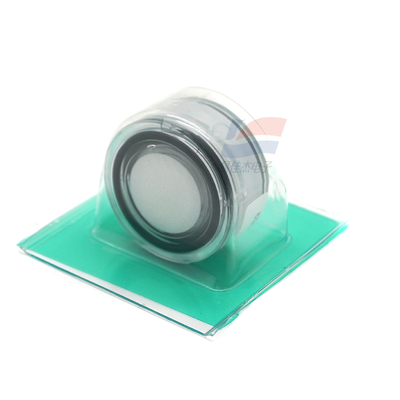

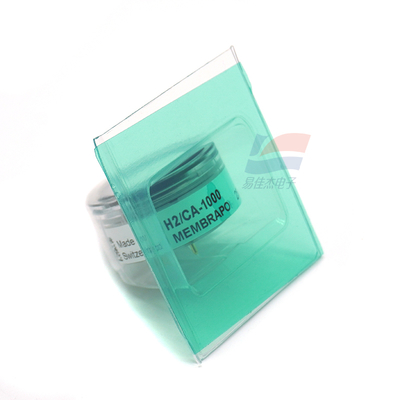

H2/CA-1000 Hydrogen Gas Sensors High Selective H2 Detection Use For Medical
Key Features
• Highly selective H2 detection in presence of CO
Applications
• Medical Applications
• H2 Detection in H2/CO-Mixtures
• Medical Applications
Electrical
| Rec. Load Resistor | 10 - 33 Ω |
| Bias (V_Sens-V_Ref) | not recommended |
| Conformity to RoHS directive | RoHS Compliance |
Environmental
| Relative Humidity Range | 15 % to 90 % RH non-condensing |
| Temperature Range | -40 °C to 50 °C |
| Pressure Range | Atmospheric |
| Pressure Coefficient | N.D. |
| Humidity Effect | None |
Lifetime
| Expected Operation Life | 2 years in air |
| Expected Long Term Output Drift in air | < 2 % signal loss per month after stabilization |
| Filter Life | Not Applicable |
| Storage Life | 6 months in container |
| Rec. Storage Temperature | 5°C - 20°C |
| Warranty Period | 12 months from date of dispatch |
