उत्पाद विवरण:
|
| Operating Principle: | 3-electrode electrochemical | Measurement Range: | 0 ppm to 80 ppm C3H3N |
|---|---|---|---|
| Filter: | None | Sensitivity: | 250 nAppm ±100 nAppm |
| प्रमुखता देना: | 4AN AI200-800 gas sensor,acrylonitrile gas detector,3 electrode electrochemical sensor |
||

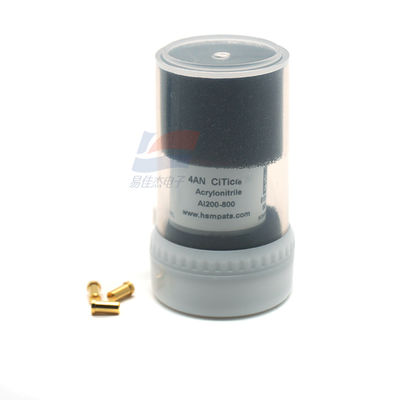

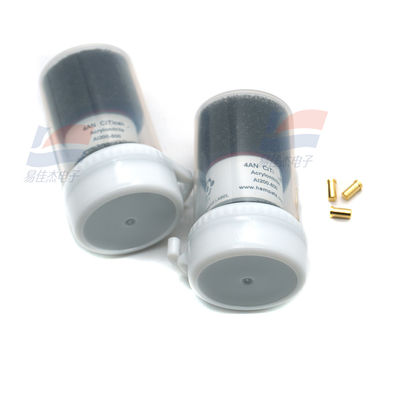

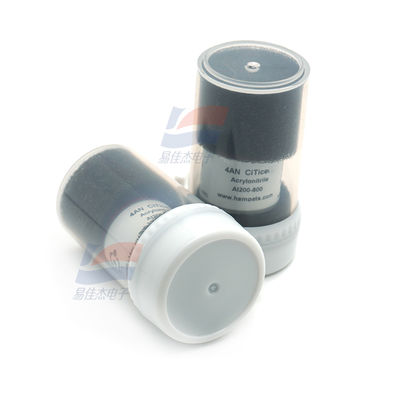

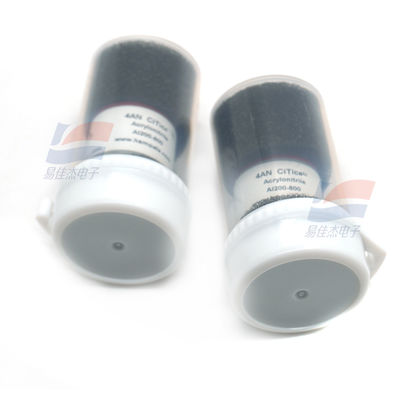

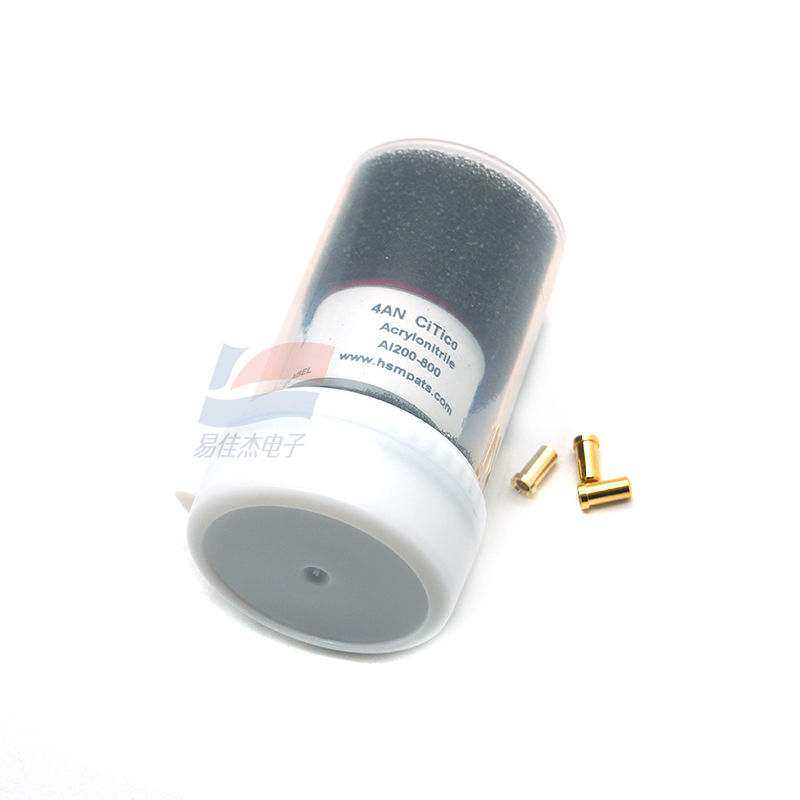

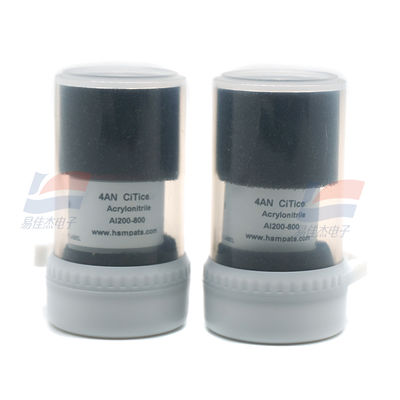

4AN AI200-800 Acrylonitrile Gas Sensor 3 Electrode Electrochemical
4AN is designed for life safety applications where the sensor is only exposed to gas occasionally. Repeated or continuous exposures will
result in significant output drift and shortened operating life. If the sensor is exposed to gas, functionality and performance characteristics should be checked to confirm that the sensor is still performing within acceptable limits.
Specification:
| Response Time (T90) | <120 seconds at 20°C |
| Baseline Offset | -0.5 ppm to +1 ppm |
| Recommended Load Resistor | 10 Ω |
| Bias Voltage | 300 mV |
| Housing Material | ABS |
| Weight | 5g |
| Orientation | Amy |
ENVIRONMENTAL:
| Operating Temperature Range | -20°C to +50°C |
| Recommended Storage Temperature | 0°C to 20°C |
| Operating Pressure Range Atmospheric | ±10 % |
