उत्पाद विवरण:
|
| कार्य वोल्टेज: | 15.4v | काम कर रहा है: | 2.5MA |
|---|---|---|---|
| तापमान की रेंज: | न्यूनतम -40 ℃ | अधिकतम: | 125 ℃ |
| उत्पादन का प्रकार: | वोल्टेज आउटपुट | इंटरफ़ेस प्रकार: | M12 या 1/2 "SAE इंटरफ़ेस |
| प्रमुखता देना: | liquid level switch for lubricating oil,machine oil level detection sensor,radiator refrigerant level switch |
||
Product Description:

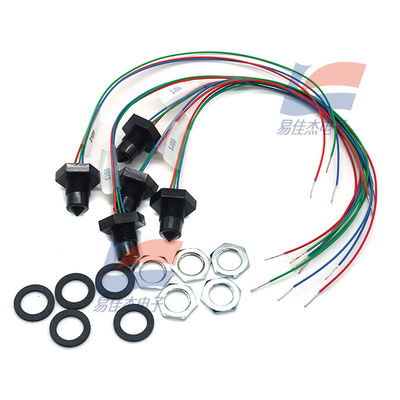

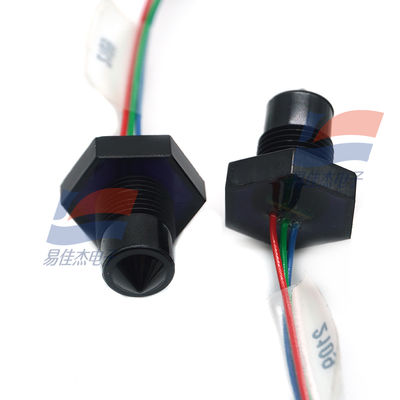

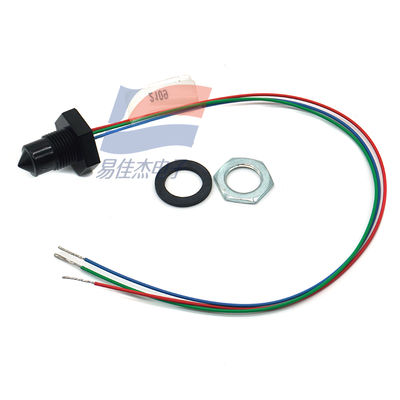

YJJ LLC200D3SH Liquid Level Switch for Liquid Level Detection of Machine Lubricating Oil Radiator Refrigerant
Features:
Photoelectric liquid level sensor LLC200D3 series (photoelectric water immersion sensor)
photoelectric water immersion sensor with plastic package
I. introduction:
LLC200D3 series of photoelectric liquid level sensor (photoelectric water immersion sensor) provides a complete product line of liquid level sensor, which is a new type of liquid level switch, but different from the traditional floating control switch, is a static component.It is small and made of an inert plastic.It is widely used in liquid level detection.
Ii. Photoelectric liquid level sensor LLC200D3 series (photoelectric water immersion sensor) features:
M10 or M12 threaded interface
Three-wire electrical interface
High cost performance
Iii. Typical applications of photoelectric liquid level sensor LLC200D3 series (photoelectric water immersion sensor) :
Tank, water level detection
Industrial printer
Automatic water level detection of water vending machine
Pump work instruction
Specifications:
| Supply voltage (Vs) | 8Vdc to 30Vdc |
| Supply current (Is) | 2.5mA (when Vs = 15.4Vdc) |
| Operating temperature | -25°C to +80°C |
| Temperature range | -40°C to +85°C |
