उत्पाद विवरण:
|
| अनुच्छेद माप श्रेणी: | 0.3 - 1.0 माइक्रोन, 1.0 - 2.5 माइक्रोन, 2.5 - 10 माइक्रोन। | कण गिनती दक्षता: | 50%@0.3μm, 98%@ .50.5μM |
|---|---|---|---|
| कार्य तापमान सीमा: | -30 - +70 ℃ | कार्य आर्द्रता सीमा: | 0 - 95% |
| भंडारण तापमान सीमा: | -40 - +85 ℃ | भौतिक आकार: | 60 मिमी × 45 मिमी × 31 मिमी |
| प्रमुखता देना: | PM2.5 dust sensor for air quality monitoring,indoor PM2.5 sensor with environmental monitoring,outdoor PM2.5 dust sensor with warranty |
||

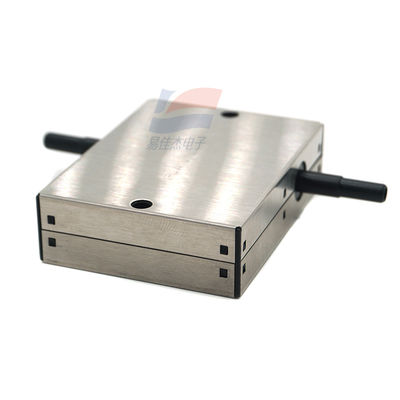

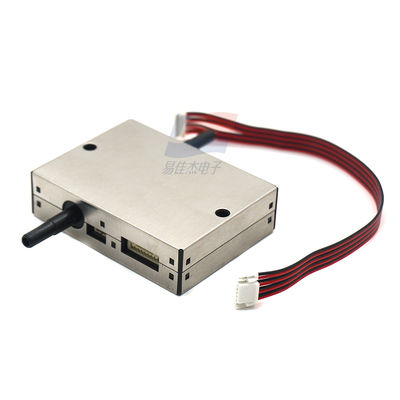

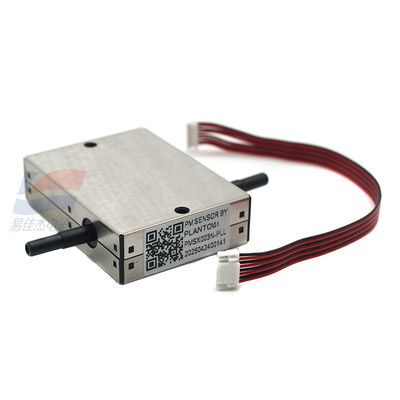

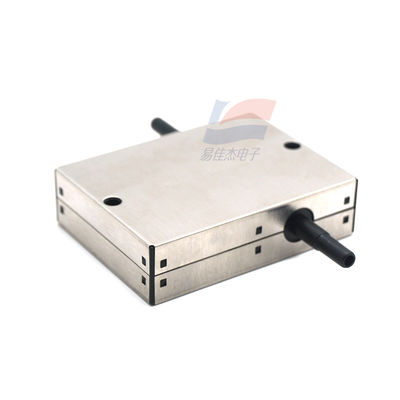

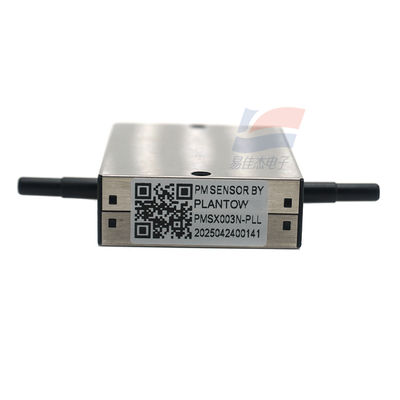

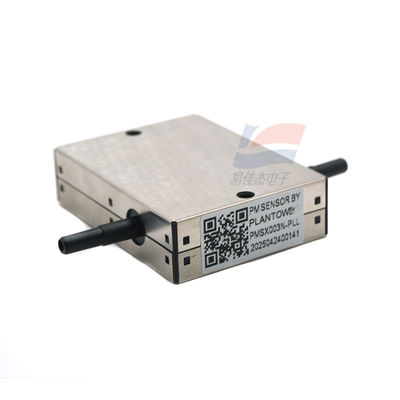

PMSX003N-PLL PM2.5 Dust Sensor For Indoor Air Quality Monitoring Outdoor Environmental Monitoring
Product Features:
Product Applications:
| Principle | Laser scattering principle |
| Particle Measurement Range | 0.3 - 1.0 μm; 1.0 - 2.5 μm; 2.5 - 10 μm; > 10 μm |
| Particle Counting Efficiency | 50% @ 0.3 μm, 98% @ ≥ 0.5 μm |
| PM2.5, PM10 Effective Range | 0 - 1000 μg/m³ |
| PM2.5, PM10 Maximum Range | ≥ 5000 μg/m³ |
| TSP Effective Range | 0 - 2000 μg/m³ |
| TSP Maximum Range | ≥ 10000 μg/m³ |
| Particle Mass Concentration Resolution | 1 μg/m³ |
| Particle Measurement Consistency (PM2.5) | ±10% @ 100 - 1000 μg/m³, ±10 μg/m³ @ 0 - 100 μg/m³ |
| Particle Measurement Consistency (PM10) | ±15% @ 100 - 1000 μg/m³, ±15 μg/m³ @ 0 - 100 μg/m³ |
| Standard Volume | 0.1 L |
| Single Response Time | < 2 s |
| Total Response Time | ≤ 10 s |
| DC Power Supply | Typ: 5.0 V, Min: 4.5 V, Max: 5.5 V |
| Active Current | ≤ 300 mA |
| Standby Current | ≤ 6 mA |
| Interface Level | L < 0.8 V @ 3.3 V, H > 2.7 V @ 3.3 V |
| Working Temperature Range | -30 °C - +70 °C |
| Working Humidity Range | 0 - 95% (no condensation) |
| Storage Temperature Range | -40 °C - +85 °C |
| MTTF (Mean Time To Failure) | ≥ 20000 h |
| Physical Size | 60 mm × 45 mm × 31 mm (fan), 60 mm × 45 mm × 16 mm (pump) |
