उत्पाद विवरण:
|
नाममात्र रेंज: | 0 ~ 500 पीपीएम | अधिकतम अधिभार: | 1000 पीपीएम |
---|---|---|---|
संवेदनशीलता (20℃): | 0.035 μ 0.015 μA/पीपीएम | प्रतिक्रिया समय (T90): | ≤ 55 एस |
प्रमुखता देना: | electrochemical ammonia gas sensor,7NH3-500S gas sensor,059-2400-000 ammonia detector |

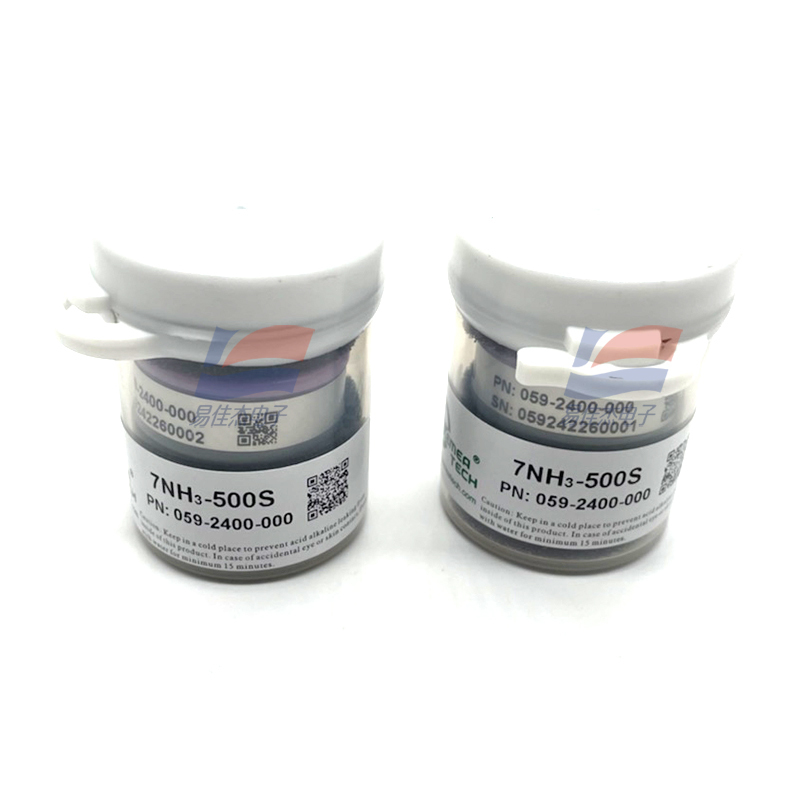

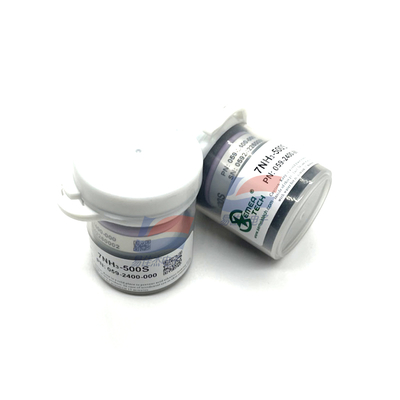

7NH3-500S 059-2400-000 Ammonia Gas Sensors Electrochemical
Product Description
This sensor is designed for the measurement of Ammonia concentration in gas phase. It can be used as the pin-to-pin replacement of the standard 7-series electrochemical Ammonia sensors made by the other manufacturers.
Performance Characteristics
Zero Signal (20℃)
|
< ±0.2 μA |
Baseline Shift | (-40℃ ~ 50℃) < 5 ppm |
Resolution | 1 ppm |
Linearity | Linear up to 500 ppm |
Bias Voltage | 0 mV |
Environmental
Temperature Range
|
-40℃ ~ 50℃ |
Pressure Range | 1 ± 0.1 atm |
Humidity Range | 15% ~ 90%RH non-condensing |
Life Time
Long Time Output Drift
|
< 2% signal/month |
Recommended Storage Temp | 10℃ ~ 30℃ |
Expected Operating Life | 2 years in clean air |
Storage Life | 6 months in original packaging |
Warranty | 12 months |
