उत्पाद विवरण:
|
| नाममात्र रेंज: | 0 ~ 5 पीपीएम | अधिकतम अधिभार: | 20 पीपीएम |
|---|---|---|---|
| संवेदनशीलता (20℃): | -0.65 μ 0.20 μA/पीपीएम | प्रतिक्रिया समय (T90): | ≤ 90S |
| प्रमुखता देना: | Nitrogen Dioxide Gas Sensor Electrochemical,7Series NO2 Gas Sensor,7NO2-5AOF Electrochemical Sensor |
||

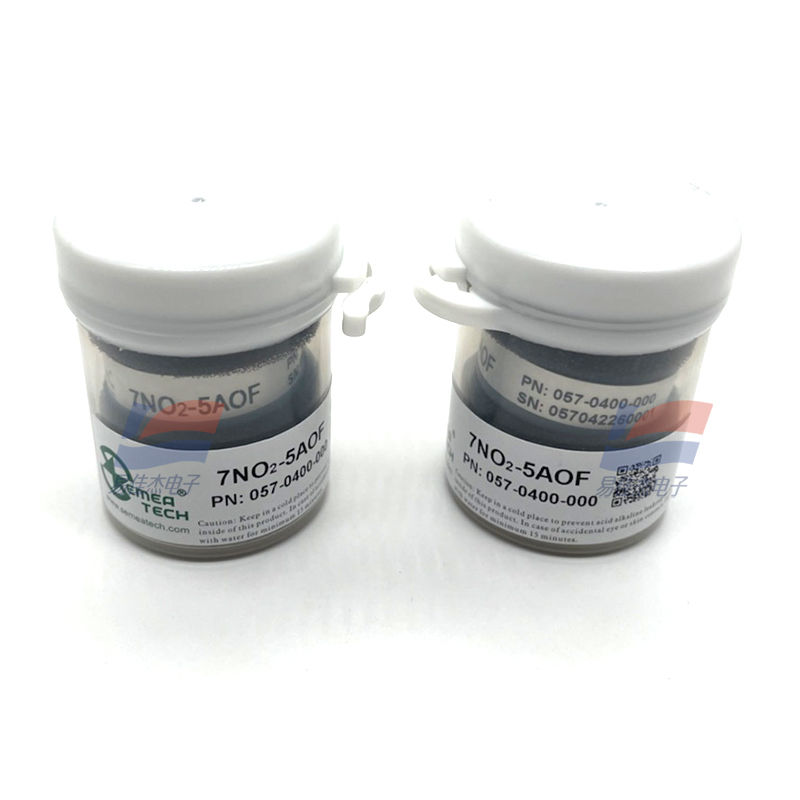

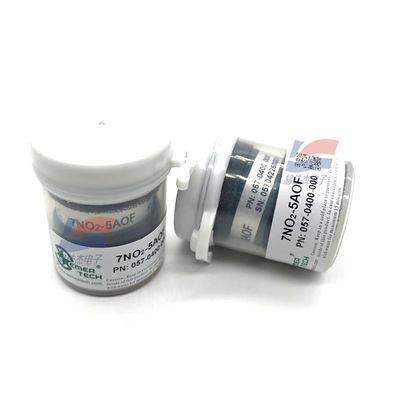

7NO2-5AOF Nitrogen Dioxide Gas Sensor Electrochemical 7Series
7NO2-5AOF refers to a 7-Series electrochemical Nitrogen Dioxide (NO2) gas sensor manufactured by companies like SemeaTech. It is designed for detecting NO2 in the environment, with a typical nominal range of 0 to 5 parts per million (ppm). This sensor features a filter to reduce cross-sensitivity to other gases like sulfur dioxide (SO2) and ozone (O3), making it suitable for air quality monitoring and industrial emission detection applications.
Performance Characteristics
|
Zero Signal (20℃)
|
< ±0.4 μA |
| Baseline Shift (-20℃ ~ 50℃) | < 0.5 ppm |
| Resolution | 0.02 ppm |
| Linearity | Linear up to 5 ppm |
| Bias Voltage | 0 mV |
Environmental
|
Temperature Range
|
-20℃ ~ 50℃ |
| Pressure Range | 1 ± 0.1 atm |
| Humidity Range | 15% ~ 90%RH non-condensing |
