उत्पाद विवरण:
|
| संकल्प: | 0.01% (0 - 5% वॉल्यूम) | शुद्धता: | ± 50 पीपीएम ± 5% सही मूल्य |
|---|---|---|---|
| प्रीहीटिंग टाइम: | 60 सेकंड | प्रतिक्रिया समय (T90): | ≤ 30 सेकंड |
| शून्य बिंदु पुनरावृत्ति: | ± 2% एफएसडी | संवेदनशीलता पुनरावृत्ति: | ± 2% एफएसडी |
| दीर्घकालिक बहाव: | ± 1% एफएसडी | कार्य -तापमान: | -20 - 60 ℃ |
| प्रमुखता देना: | ethylene infrared gas sensor,IRS7 gas sensor with selectable range,0-2000ppm ethylene gas detector |
||
Product Description:

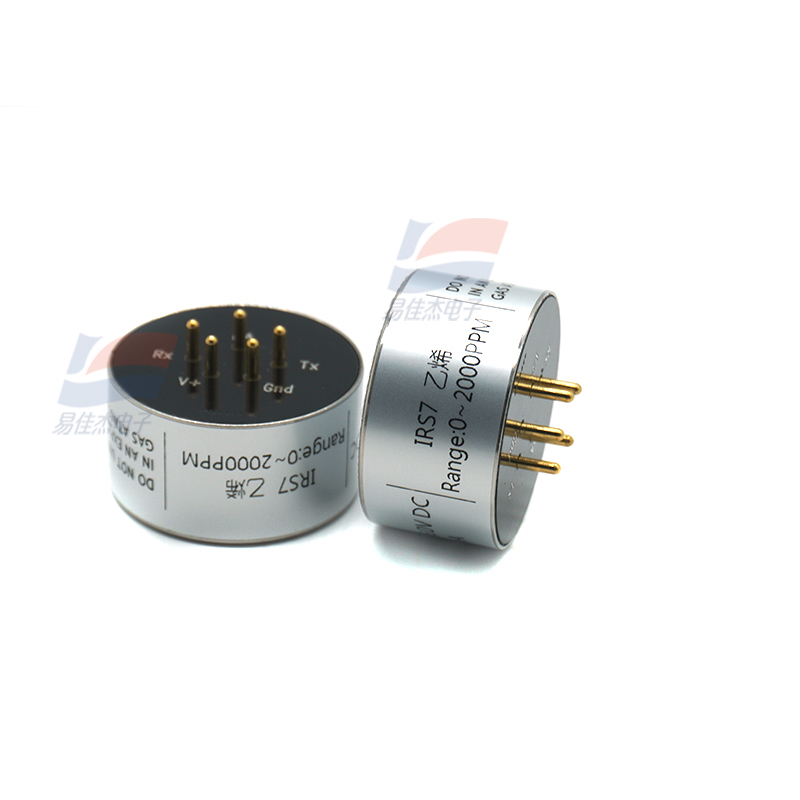

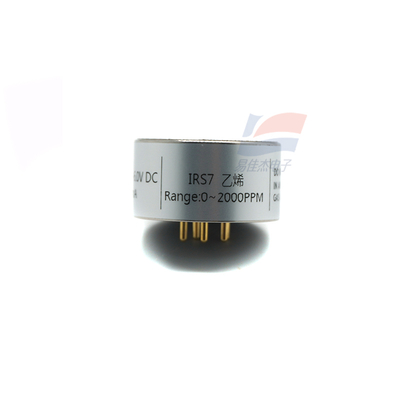

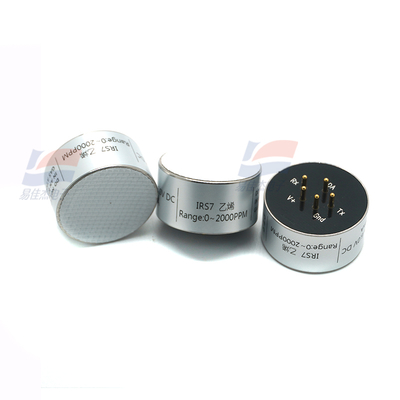

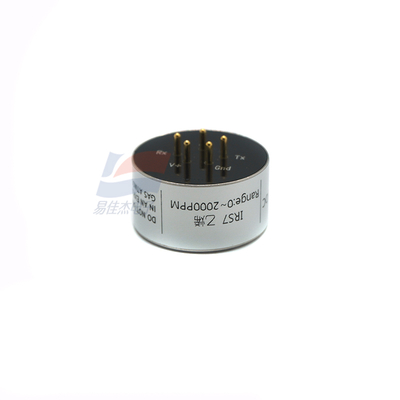

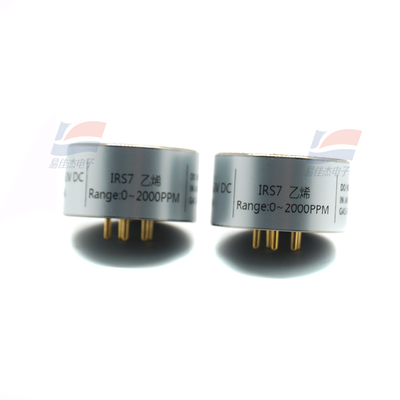

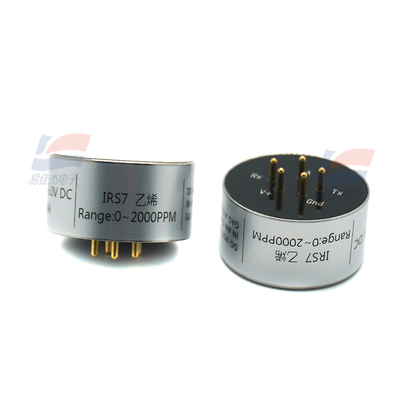

YJJ IRS7 0-2000PPM Series Ethylene Infrared Gas Sensor (With Selectable Range)
Features:
Main features
Low power consumption
Compact size, easy installation
Complete factory calibration
Excellent long-term stability
Digital output
Linear voltage output
Excellent temperature performance
Dual-channel design
Robust metal structure Overview
IR-S is a gas sensor based on the principle of infrared absorption. Compared with traditional gas sensors, it has the advantages of good stability, strong selectivity, no oxygen dependence, wide detection range, long lifespan, long maintenance period, and strong anti-interference ability.
IR-S adopts a low-power processor, imported light source and dual-channel detector. It controls the overall power consumption while maintaining a constant sensor working current to ensure that the power supply circuit is not affected by current shock, ensuring the high efficiency, high accuracy and stable and reliable operation of the sensor data processing.
IR-S has digital signal output and analog voltage output, which is convenient for customers to choose applications. In addition, IR-S/CO2 provides customers with zero-point calibration and sensitivity calibration commands. At the same time, there are multiple baud rates and voltage ranges available for customers to choose.
Application
Industrial or mining gas concentration transmitters
Industrial or mining portable gas analyzers
Meteorology, agriculture, environmental air quality monitoring
Air quality monitoring in public places
Customizable measurement for other gases such as CO, SF6, etc.
Specifications:
| Range | 0 - 2000 ppm |
| Sensitivity | 1.9 ± 0.8 μA/ppm (at 20℃) |
| Baseline range | -0.2 to 2.5 μA (@20℃) |
| Baud rate | 19200 38400 11520 |
