उत्पाद विवरण:
|
| संवेदनशील क्षेत्र: | 1 | पिक्सल की संख्या: | 1 |
|---|---|---|---|
| घुसपैठ प्रकार: | को-18 | कूलिंग मोड: | बिना ठंडे |
| वर्णक्रमीय प्रतिक्रिया सीमा: | 0.9 से 1.7 माइक्रोन | हल्की संवेदनशीलता: | 1.1 ए/डब्ल्यू |
| प्रमुखता देना: | InGaAs PIN photodiode for fiber communication,Non-cooled infrared photoelectric sensor,Optical communication photodiode with warranty |
||
Product Description:

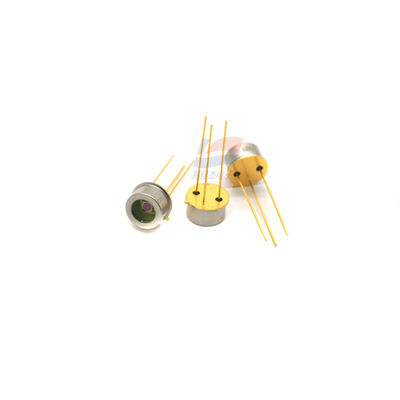

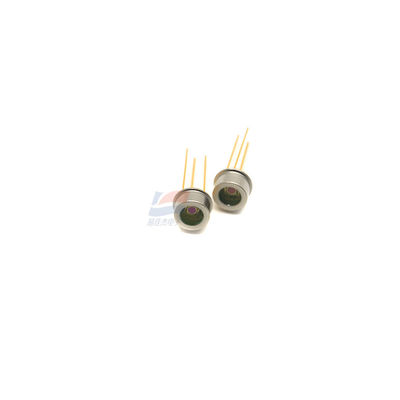

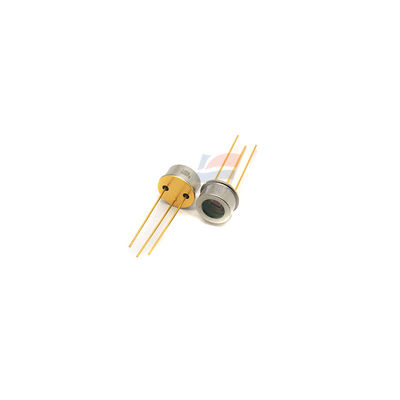

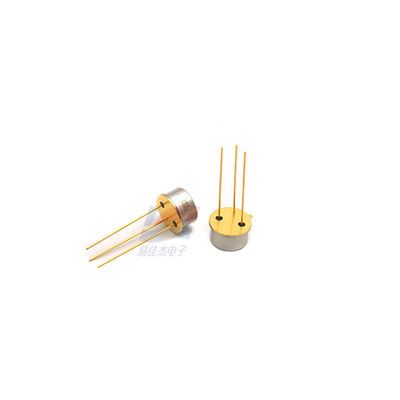

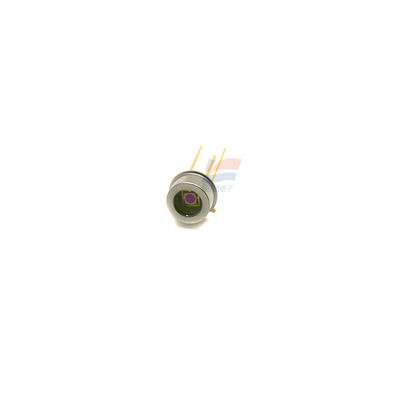

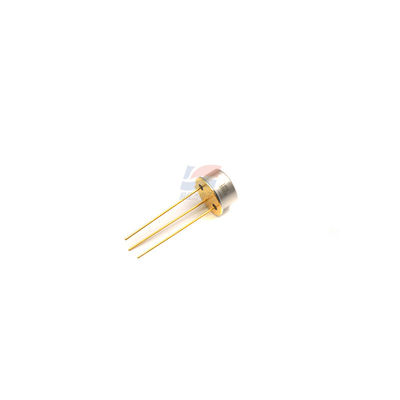

YJJ G12180-020A InGaAs PIN Photodiode Non-Cooled Type For Optical Fiber Communication
Features:
Sensitive area: φ1mm
Product characteristics
Low noise
Low junction capacitance
Low dark current
Sensitive area: φ1mm
Detailed parameter
The sensitive area is φ1mm
The number of pixels is 1
Encapsulation Metal
Encapsulation type: TO-18
Cooling mode Non-cooled
Spectral response range is 0.9 to 1.7 μm
The peak sensitivity wavelength (typical value) is 1.55 μm
Light sensitivity (typical value) 1.1 A/W
Dark current (Max.) 4 nA
Cut-off frequency (typical value) 60 MHz
Junction capacitance (typical value) 55 pF
Noise equivalent power (typical value) 1.4×10-14 W/Hz1/2
Typ. Ta=25 ℃, unless otherwise noted, Photosensitivity: λ=λp, Dark current: VR= 5V, Cutoff frequency: VR= 5V, RL= 50Ω, -3 dB, Terminal capacitance: VR= 5V, f= 1MHz.
Specifications:
| Photosensitive area | 0.2mm |
| The encapsulation type is | TO-18 |
| Peak sensitivity wavelength (typical value) | 800 nm |
| The spectral response range is | 400 to 1000 nm |
