उत्पाद विवरण:
|
| पता लगाना: | 0 - 200 मिमी | प्रकाश स्रोत: | दृश्यमान लाल एलईडी |
|---|---|---|---|
| आउटपुट करेंट: | अधिकतम 100 एमए | वोल्टेज आपूर्ति: | डीसी 10 - 30 वी |
| नो-लोड करंट: | ≤ 10 एमए | प्रतिक्रिया समय: | ≤ 1 एमएस |
| प्रमुखता देना: | high-performance photoelectric sensor,infrared photoelectric sensor for conveyor belts,material handling photoelectric sensor |
||

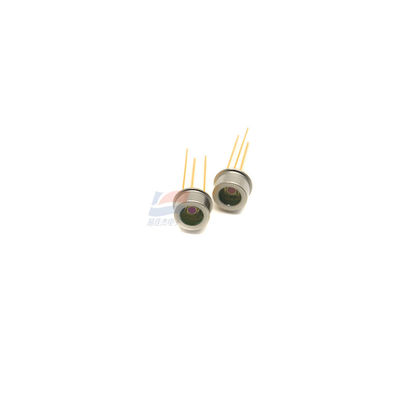

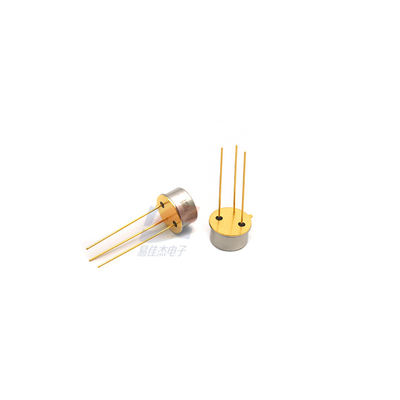

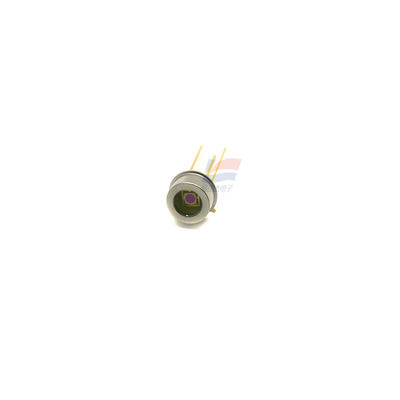

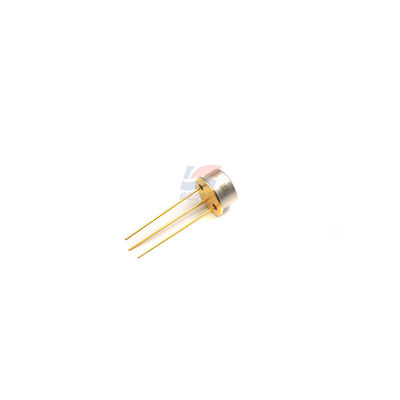

G12180-020A High-performance Photoelectric Sensor For Conveyor Belt Systems Material Handling Equipment
1. General Description:
The G12180-020A is a high-performance photoelectric sensor designed for precise object detection and position sensing. It adopts advanced optical sensing technology to ensure stable operation in various industrial and commercial environments, with strong anti-interference ability and reliable detection performance.
2. Product Features:
3. Applications:
| Detection Principle | Photoelectric reflection (diffuse reflection type) |
| Detection Distance | 0 - 200 mm (standard white paper, 80×80 mm) |
| Light Source | Visible red LED (wavelength: 660 nm) |
| Output Type | NPN normally open (NO) / normally closed (NC) (configurable) |
| Output Current | Maximum 100 mA |
| Supply Voltage | DC 10 - 30 V |
| No-load Current | ≤ 10 mA |
| Response Time | ≤ 1 ms (rise time + fall time) |
| Protection Level | IP67 (dust-tight and waterproof against temporary immersion) |
| Operating Temperature Range | -25 °C to +55 °C (no condensation) |
| Storage Temperature Range | -40 °C to +70 °C (no condensation) |
| Housing Material | ABS plastic (housing) + glass (lens) |
| Connection Method | 2 m PVC cable (standard) |
| Indicator Lights | Power indicator (red) + output indicator (green) |
| Vibration Resistance | 10 - 55 Hz, 1.5 mm double amplitude (X, Y, Z directions, 2 hours each) |
| Shock Resistance | 500 m/s² (X, Y, Z directions, 3 times each) |
