उत्पाद विवरण:
|
| संकल्प: | <0.02 पीपीएम (20℃ पर) | तापमान की रेंज: | -10 ℃ से 40 ℃ |
|---|---|---|---|
| आर्द्रता सीमा: | 15% - 90% सापेक्ष आर्द्रता | प्रतिक्रिया समय: | टी90 <120 सेकंड |
| बिजली वोल्टेज: | स्पष्ट रूप से नहीं कहा गया है | इलेक्ट्रोडों की संख्या: | 3 इलेक्ट्रोड |
| प्रमुखता देना: | fluorine gas sensor electromechanical,mini standard gas sensor,gas sensor 4 series 7 series |
||
Product Description:

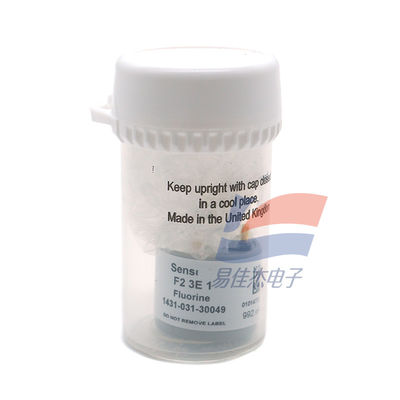

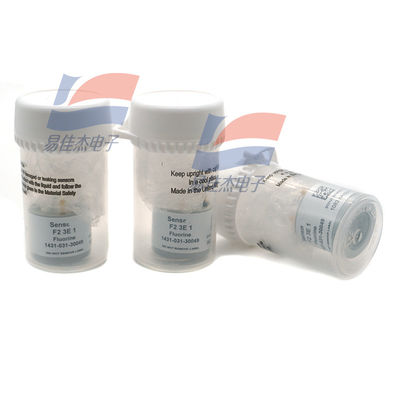

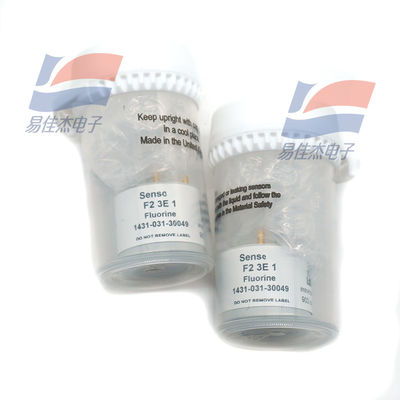

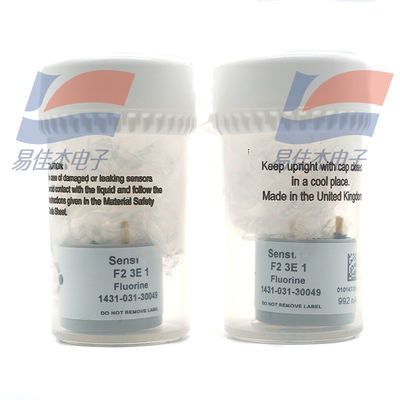

YJJ F2 3E 1 1431-031-30049 Fluorine Gas Sensor Electromechanical Mini Standard Type 4 Series And 7 Series Three Sizes
Features:
Main parameters of the F2 3E1 gas sensor are as follows:
Measurement range and resolution
Measurement range: 0 - 1 ppm (fluorine gas concentration)
Resolution: < 0.02 ppm (at 20℃)
Working conditions
Temperature range: -10℃ to 40℃
Humidity range: 15% - 90% relative humidity
Performance indicators
Cross-interference: Anti-interference gases include AsH3, CO, CL2, HCN, H2S, NO2, O3, SO2, etc.
Response time: T90 < 120 seconds (signal stabilization time)
Power Supply and Output
Power Voltage: Not explicitly stated, but common industrial gas sensors typically use 24V direct current for power supply.
Output signal: 650 nA/ppm ± 150 nA/ppm (current output)
Other features
Number of electrodes: 3 electrodes
Service life: More than 18 months of use in the air
Specifications:
| Maximum range | 30% |
| Output signal | 0.195-0.25mA |
| Response time | 15s |
| Offset | < 0.5% O |
