उत्पाद विवरण:
|
| माप श्रेणी: | 0 ~ 100ppm | सेवा जीवन: | हवा में 2 साल |
|---|---|---|---|
| उत्पादन में संकेत: | 90±18nA/पीपीएम | संकल्प: | 1 पीपीएम |
| तापमान की रेंज: | -10 डिग्री सेल्सियस से 40 डिग्री सेल्सियस | प्रतिक्रिया समय (T90): | <60 सेकंड |
| आर्द्रता सीमा: | 15% से 90% | आधारभूत: | 0पीपीएम±4पीपीएम |
| प्रमुखता देना: | electrochemical ammonia gas sensor,liquid ammonia leakage detector,NH3 CR-50 gas sensor |
||
Product Description:

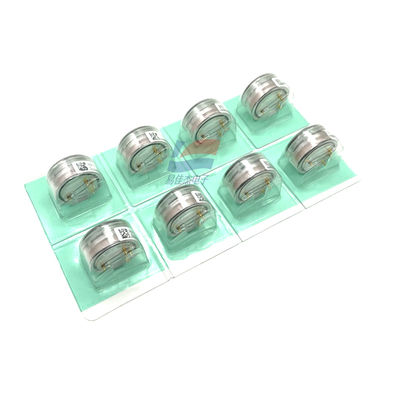

YJJ NH3/CR-50 Electrochemical Ammonia Gas Sensor Is Used As A Liquid Ammonia Leakage Sensor
Features:
Ammonia gas sensor (NH3 sensor)
NH3/CR-200,NH3/MR-100,NH3/S-200,NH3/CR-1000,NH3/MR-1000,
NH3/CB-200 completely replaces 7AM, 7NH and A7AM in UK CITY
NH3/SB-200 completely replaces 3AM in UK CITY
NH3/MR-100 completely replaces 4AM in UK CITY
Technical parameters of NH3 sensor:
NH3/CR-200
Measurement range: 0 ~ 100ppm
Maximum load: 200ppm
Service life: 2 years in air
Output signal: 90±18nA/ PPM
Resolution: 1 PPM
Temperature range: -10°C to 40°C
Response time (T90) : <60sec
Humidity range: 15%to90%
Baseline: 0ppm±4ppm
Typical signal drift: <5% per 6 months
Recommended loading resistance: 10 Ohm
Bias voltage: not required
NH3/MR-100
Measurement range: 0 ~ 100ppm
Maximum load: 200ppm
Service life: 2 years in air
Output signal: 120±30nA/ PPM
Resolution: 1 PPM
Temperature range: -10°C to 40°C
Response time (T90) : <50sec
Humidity range: 15%to90%
Baseline: 0ppm±3ppm
Typical signal drift: <5% per 6 months
Recommended loading resistance: 10 Ohm
Bias voltage: not required
NH3/SR-200
Measurement range: 0 ~ 100ppm
Maximum load: 200ppm
Service life: 2 years in air
Output signal: 90±18nA/ PPM
Resolution: 1 PPM
Temperature range: -10°C to 40°C
Response time (T90) : <60sec
Humidity range: 15%to90%
Baseline: 0ppm±4ppm
Typical signal drift: <5% per 6 months
Recommended loading resistance: 10 Ohm
Bias voltage: not required
Specifications:
| Detection of gas | NH3 |
| range | 0-20ppm |
| Maximum limit of measurement | 250ppm |
| The sensitivity | 1±0.25 uA/ppm |
