उत्पाद विवरण:
|
| माप श्रेणी: | 0 - 10 पीपीएम | संकल्प: | 0.01 पीपीएम |
|---|---|---|---|
| अधिकतम अधिभार: | 100 पीपीएम | संवेदनशीलता: | 55 एनए/पीपीएम ± 15 एनए/पीपीएम |
| प्रमुखता देना: | electrochemical VOC gas sensor,no leakage gas sensor,multi-gas detection sensor |
||

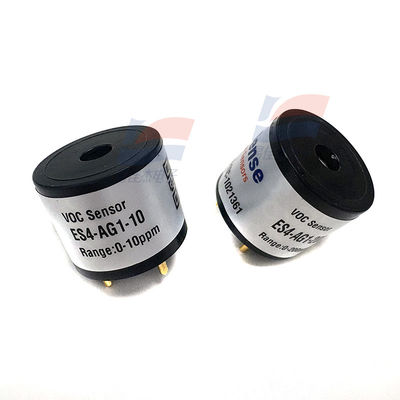

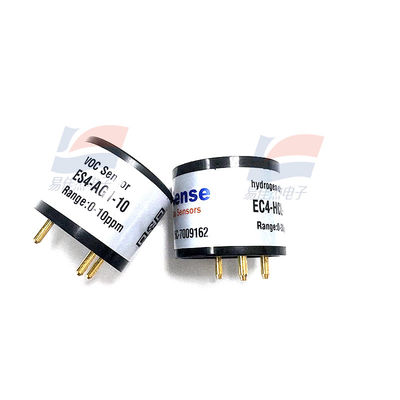

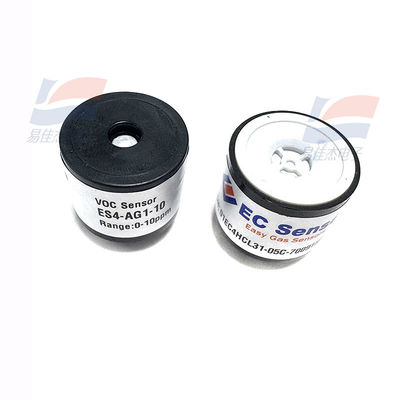

ES4-AG1-10 VOC Gas Sensors Electrochemical No Leakage Variety Of Gases
What is the AG1 Gas Sensor and how does it work?
The EC Sense ES1-AG1-10 ALL GAS Gas Sensor is a cutting-edge solid polymer electrochemical gas sensor, known for its extended lifespan and durability. Notably, it operates without any power consumption and boasts a compact design. This ES1-AG1-10 Gas Sensor is specifically engineered to detect most gases in the air (TVOCs, CO, H2S, H2, NO2, etc.), which are crucial to detect in various applications. When paired with the EC Sense Smart Digital Board, it simplifies integration, eliminating the need for labor-intensive sensor calibration.
Feature:
Detects with high selectivity a wide variety of gases
Long lifetime > 3 years
No-poisoning
Typical warm-up time in seconds
Fast response time
No power consumption
Linear output
No zero line drift
Better signal to noise ratio
Wide operation temperature range of -40°C to +55°C
Excellent sensitvity at low temperatures
No leakage
RoHS compliant
Specification:
| Response Time | T50 < 10 sec. / T90 < 30 sec. |
| Weight | < 6 g |
| Dimensions (sensor) | Ø20 x 16.6 mm (without pins) |
