उत्पाद विवरण:
|
| परिचालन दबाव अधिकतम: | 1 पीएसआई | वेल्टेज रेटिंग: | 10 वी |
|---|---|---|---|
| बिजली आपूर्ति करें: | 2 मा | शुद्धता: | ± 0.25% |
| प्रतिक्रिया समय: | 1 एमएस | एनालॉग आउटपुट: | 30 - 60 एमवी |
| प्रमुखता देना: | miniature pressure sensor for medical,electronic pressure sensor for instrumentation,24PCAFA6D pressure sensor with warranty |
||

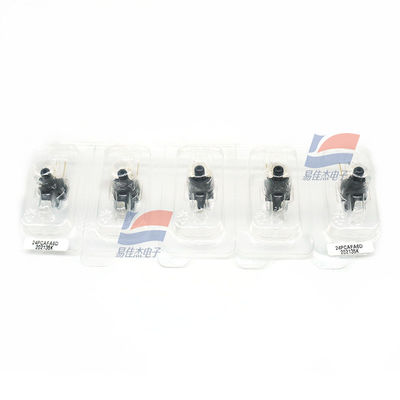

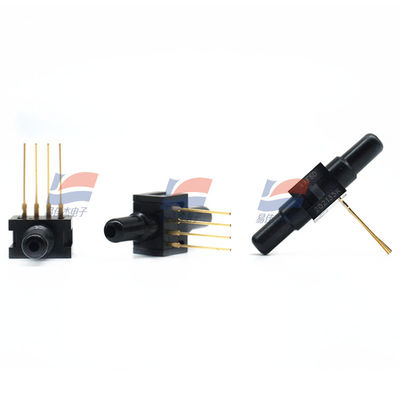

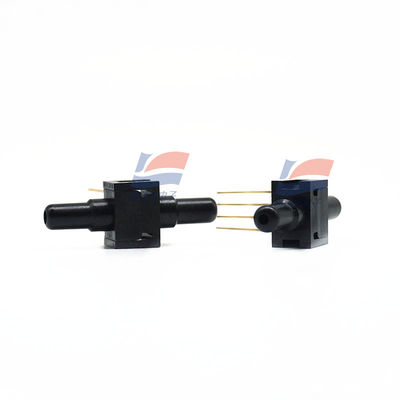

24PCAFA6D Miniature Pressure Sensor For Sensing & Instrumentation Medical Industry
Features:
Applications:
| Pressure Measurement Type | Differential |
| Maximum Operating Pressure | 1 psi |
| Output Type | Voltage (Analogue) |
| Analogue Output Range | 30 - 60 mV |
| Supply Voltage Rating | 10 V |
| Supply Current | 2 mA |
| Accuracy | ±0.25% |
| Response Time | 1 ms |
| Operating Temperature Range | -40°C to 85°C |
| Compatible Measured Media | Nitrogen gas, oxygen, water |
| Package Size | Small (3.18 mm / 0.125 inch diameter pick-up feature) |
| Maximum Peak Reflow Temperature | 260°C (500°F) |
| Mounting Type | PCB through-hole (90°) |
