उत्पाद विवरण:
|
| कार्य का दबाव: | 50 केपीए | शुद्धता: | 0.5% |
|---|---|---|---|
| उत्पादन का प्रकार: | अनुरूप | स्थापना शैली: | एसएमडी/एसएमटी |
| कामकाजी बिजली आपूर्ति वोल्टेज: | 10V | बंदरगाह प्रकार: | एकल अक्षीय बारबलेस |
| पोर्ट आकार: | 2.97 मिमी | कामकाजी बिजली की आपूर्ति करंट: | 6mA |
| प्रमुखता देना: | medical device pressure sensor,lever interface pressure sensor,electronic pressure sensor with warranty |
||
Product Description:

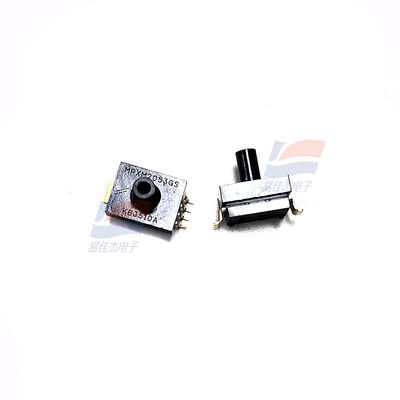

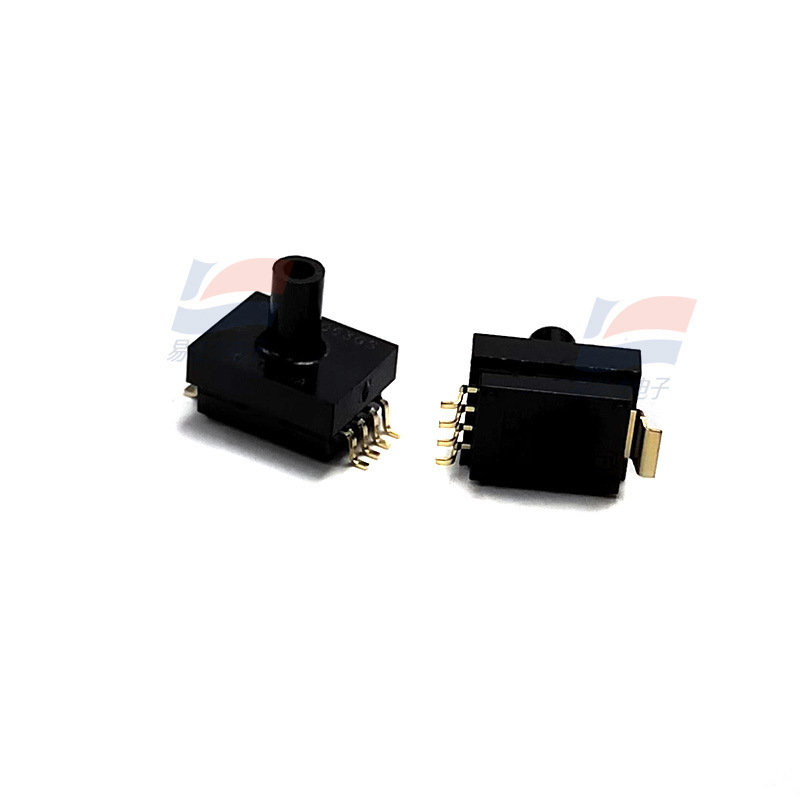

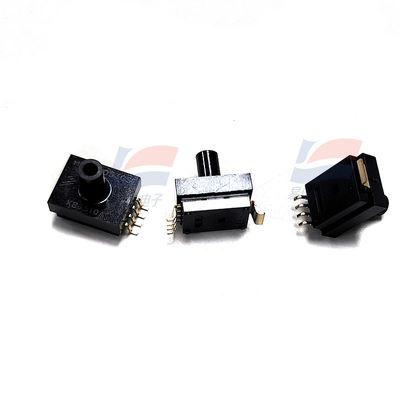

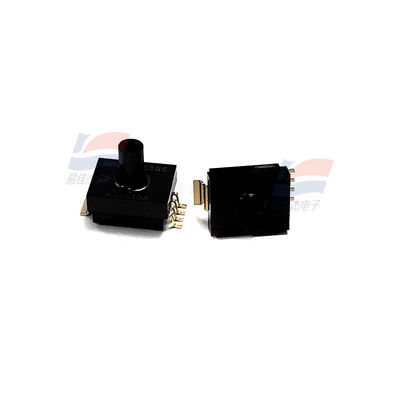

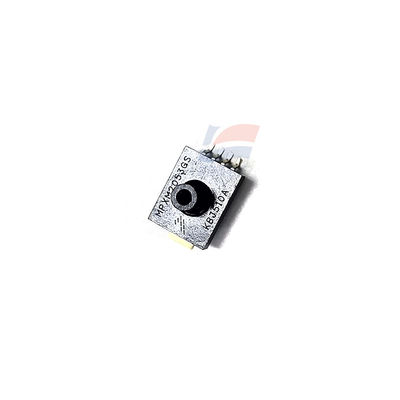

YJJ MPXM2053GS lever Interface Pressure Sensor Is Used In Medical Devices
Features:
Main parameters and applications of the MPXM2053GS pressure sensor are as follows:
Parameter Description
Operating Temperature Range: 0°C to +85°C
Operating Voltage: Voltage output proportional to the supply voltage
Package Type: Optional MPAK or Mini-MPAK packaging
Calibration Method: Achieve precise calibration through laser fine-tuning, supporting temperature compensation
Pressure Range: 7psi (Specific models may support different pressure ranges; please refer to the data sheet)
Main applications:
Industrial control: Suitable for pump/motor control, robot pressure detection
Medical field: Blood pressure measurement equipment, medical diagnostic instruments
Environmental monitoring: Gas pressure control, research equipment
This sensor employs silicon strain gauge technology, featuring high precision and low linear error. It can be customized with various packages and calibration options to meet the requirements of different scenarios.
Product type: Board interface pressure sensor RoHS:
Pressure Type: Gauge
Working Pressure: 50 kPa
Accuracy: 0.5 %
Output Type: Analog
Installation Style: SMD/SMT
Working Power Supply Voltage: 10 V
Port Type: Single Axial Barbless
Package / Housing: M-PAK-5
Minimum Working Temperature: -40°C
Maximum Working Temperature: +125°C
Series: MPXx2053
Package: Tube
Working Power Supply Current: 6 mA
Port Size: 2.97 mm
Product Type: Board Mount Pressure Sensors 60
Subcategory: Sensors
Maximum power supply voltage: 16 V
Minimum power supply voltage: 1 V
Part number alias: 935309666174
Unit weight: 527.800 mg
Specifications:
| Pressure type | differential D |
| Pressure of work | 10Kpa |
| output type | Analog voltage output |
| output voltage | 100mV |
