उत्पाद विवरण:
|
| पता लगाया गया गैस: | नाइट्रस ऑक्साइड (N₂O, हंसाने वाली गैस) | पता लगाने का सिद्धांत: | गैर-फैलाने योग्य अवरक्त (एनडीआईआर) प्रौद्योगिकी |
|---|---|---|---|
| मानक माप सीमा: | 0-1000पीपीएम, 0-2000पीपीएम (मानक); 0-10%, 0-100% वॉल्यूम (औद्योगिक ग्रेड) | संकल्प: | ≤1ppm (कम रेंज); ≤0.1% वॉल्यूम (उच्च रेंज) |
| प्रमुखता देना: | IRS4 N2O gas sensor,Nitrous oxide IR sensor,N2O G4 infrared detector |
||

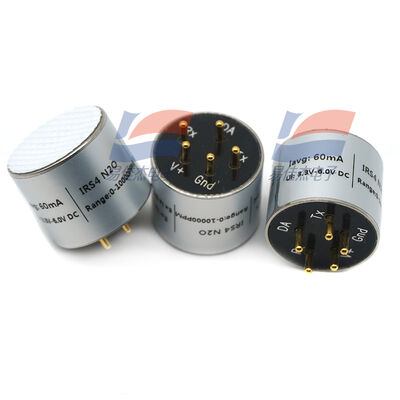

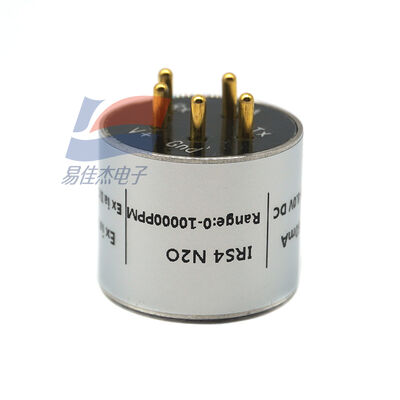

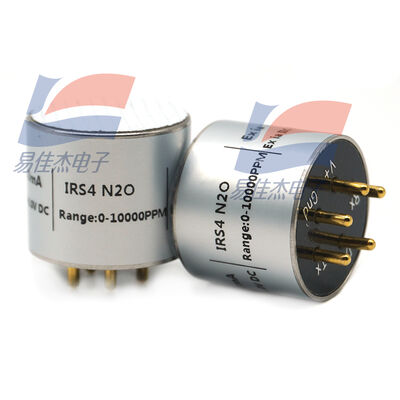

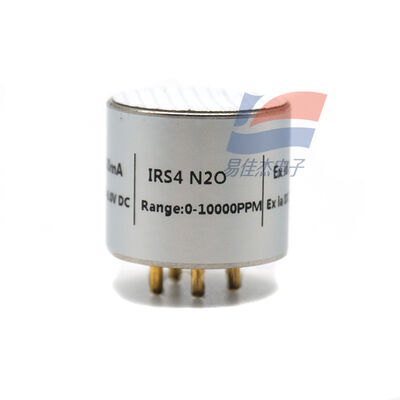

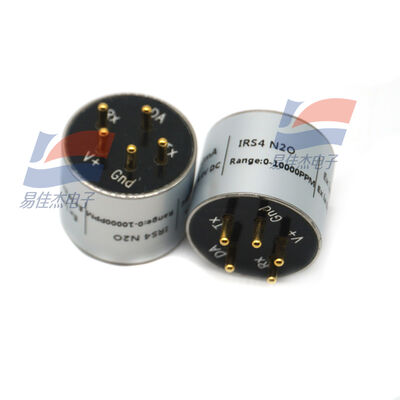

IRS4 N2O Nitrous Oxide Gas Sensor N2O G4 IR Non Dispersive Infrared
Specification:
| Accuracy | ±2ppm (0-100ppm); ±10% of reading (100-1000ppm); ±2% FS (full scale) |
| Response time | ≤7 seconds (data refresh); ≤45 seconds (gas response) |
Electrical and output characteristics
| Power supply voltage | 9-24VDC (industrial modules); 5VDC (OEM miniature sensors) |
| Output signal | 4-20mA, 0-10VDC (analog); RS232/RS485 (digital) |
| Power consumption | ≤100mA (24VDC power supply) |
| Alarm output | Optional 1-3 level relay alarm (contact capacity 8A/250VAC) |
Environmental and mechanical properties
| Operating temperature | 0-50℃ (standard); -40-85℃ (wide temperature range) |
| Operating humidity | 0-99% RH (non-condensing) |
| Protection rating | IP65 (industrial grade); IP40 (OEM module) |
| Sampling method | Diffusion/Pump suction optional |
| Gas medium | Non-corrosive gas (requires filtration of oil and dust) |
Stability and Calibration
| Zero drift | ≤±2% FS/year |
| Span drift | ≤±2% FS/year |
| Calibration cycle | 6-12 months (recommended) |
| Temperature compensation | Built-in automatic temperature compensation (0-50℃ range) |
