उत्पाद विवरण:
|
| प्रचालन सिद्धांत: | इलेक्ट्रोकेमिकल (तीन-इलेक्ट्रोड) | डिटेक्शन रेंज: | 0–100 पीपीएम |
|---|---|---|---|
| विस्तारित रेंज: | 200 पीपीएम | बेसलाइन करंट: | <Μ 0.2 μA |
| प्रमुखता देना: | carbon monoxide gas sensor electrochemical,three electrode gas sensor,CO gas sensor with warranty |
||

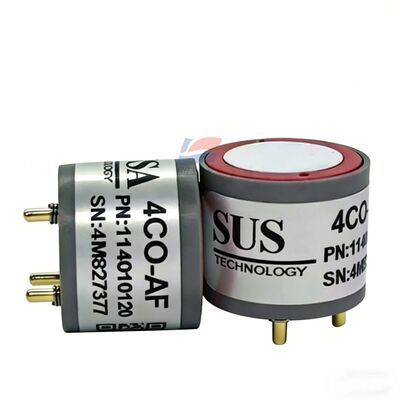

4CO-AF 114-010-120 Carbon Monoxide Gas Sensor Electrochemical Three Electrode System
The 4CO-AF is an electrochemical carbon monoxide (CO) gas sensor featuring a low measurement range and high sensitivity, primarily designed for trace-level CO detection in the fields of industrial safety and life support.
Specification:
|
Parameter
|
Specification |
| Zero Drift (-20 to 50°C) | -1 to 5 ppm |
| Sensitivity | 200 ± 50 nA/ppm (Positive Signal) |
| Response Time | < 15S |
| Repeatability | < ±2% of signal per month |
| Linearity Linear up to | 200 ppm |
Electrical Parameters
|
Resolution
|
0.5 ppm |
| Bias Voltage | 0 mV (None) |
| Recommended Resistance | 5–30 Ω |
Physical Properties
| Weight | < 5 g |
| Orientation requirement | None |
Work Environment
|
Intended Use
|
Suitable for most life safety detectors |
| Operating Temperature Range | -40 to 50°C |
| Operating Pressure Range | 800–1200 mbar |
| Operating Humidity Range | 15%–90% RH (non-condensing) |
