उत्पाद विवरण:
|
| विद्युत आपूर्ति वोल्टेज: | 10~16V | कार्य तापमान: | -40~+85 |
|---|---|---|---|
| भंडारण तापमान: | -55~+100 | प्रभाव: | 150 ग्राम |
| प्रमुखता देना: | medical gas pressure sensor,air duct pressure sensor 26PCFFA6G,espiratory device pressure sensor |
||

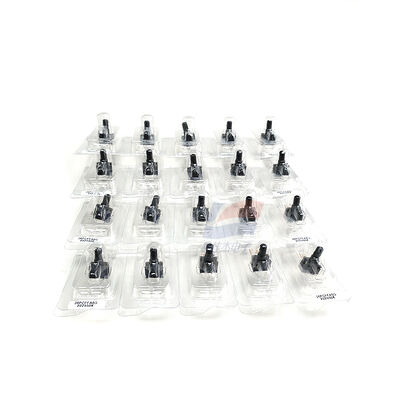

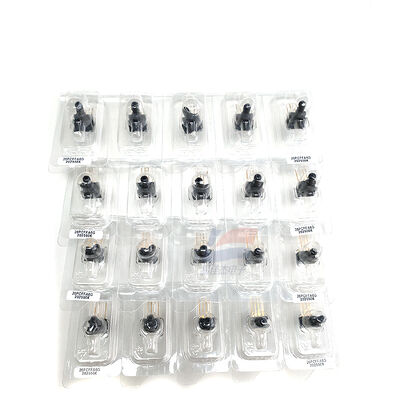

Pressure Sensors 26PCFFA6G for Espiratory Devices Medical Gas Pressure Monitoring Air Duct Pressure
| Sensor Model | 26PCFFA6G |
| Pressure Type | Gauge Pressure |
| Detection Range | 0 ~ 100 PSI |
| Maximum Overload Pressure | 200 PSI |
| Supply Voltage | 10 VDC (Typical) |
| Output Voltage | 0 ~ 100 mV |
| Response Time | ≤ 1 ms |
| Media Type | Dry Gas & Non-corrosive Liquid |
| Working Temperature | -40 ℃ ~ +85 ℃ |
| Package Type | SIP-4 Through-hole |
| Pressure Port | Single Axial Barbless Port |
| Characteristic | Temperature Compensated, Unamplified |
