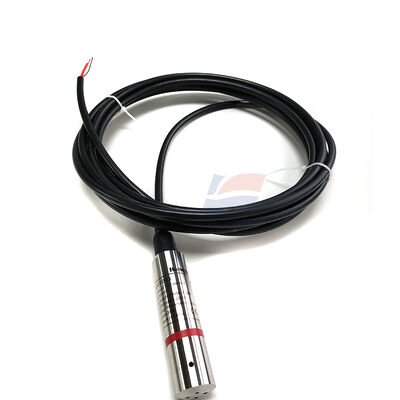

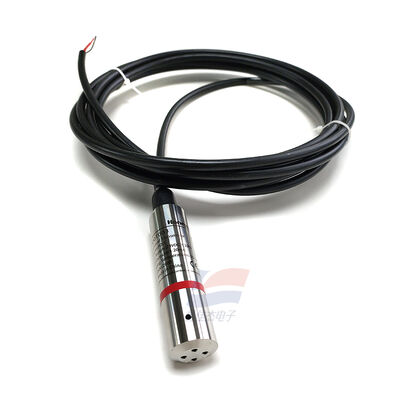

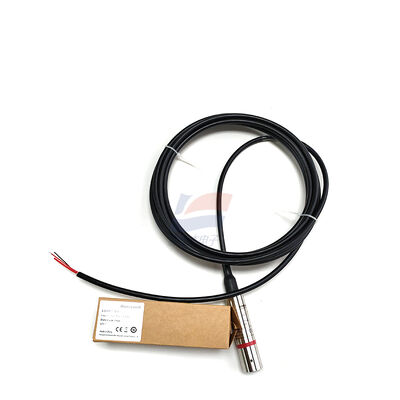

YJJ L8000T003 Immersion-type Liquid Level Transmitter 0-3m/ 0-30kPa Water Supply Drainage Utilities

Product Description:

YJJ L8000T003 Immersion-type Liquid Level Transmitter 0-3m/ 0-30kPa Water Supply Drainage Utilities

Features:

I. Model Definition

L8000T003: L8000T series, 3-meter water level measurement range, 4-20mA current output, submersible static pressure liquid level sensor.

II. Core Technical Parameters

Measurement Range: 0 - 3 meters water column (0 - 30 kPa)

Output Signal: 4 - 20mA DC (corresponding to 0 - 3 meters liquid level)

Power Supply Voltage: 15 - 28VDC (two-wire system)

Overload Pressure: 1.5 times full-scale pressure

Accuracy Class: ±0.25% FS

Non-linearity: ±0.15% FS

Repeatability / Hysteresis: 0.15% FS

Temperature Range

Medium Temperature: -10℃ - +80℃

Storage Temperature: -40℃ - +100℃

Long-term Stability: 0.2% FS / year, zero point annual drift is minimal

Protection Grade: IP68, can be used for long-term submersion underwater Material

Shell + Inductive Diaphragm: 316 stainless steel

Sealing Components: Nitrile rubber (NBR), suitable for clean water and mild sewage

Cable Configuration: Standard = Range + 2 meters (This model comes with a total cable length of 5 meters, and can be extended for customization)

Connection Method: Two-wire system (black wire for power +, red wire for signal output)

Certification: CE compliance

III. Measurement Principle

The liquid static pressure is proportional to the liquid level height. The diaphragm at the bottom of the probe is subjected to water pressure, and the built-in diffusion silicon pressure core converts the pressure into a standard 4-20mA current signal, which is directly connected to PLC, digital display meters, DCS systems for converting water level height.

IV. Main Applications

1. Water Supply and Drainage Waterworks (Main scenarios)

Continuous monitoring of water level in water tanks, filter tanks, reservoirs in waterworks

Level measurement and control of regulating tanks, biochemical tanks, collection wells in sewage plants

Automatic start-stop control of groundwater wells, pump room water tanks

2. Building HVAC

Monitoring of liquid levels in central air conditioning water tanks, expansion water tanks, collection pits, alarm for water shortage and overflow prevention.

3. Municipal Pipelines

Water level monitoring in underground utility tunnels, rainwater wells, flood storage tanks, collection of water level data for remote water management systems

4. Industrial Tanks

Continuous measurement of liquid levels in water purification equipment, pure water tanks, environmental water treatment tanks, to achieve automatic water replenishment and upper/lower limit interlock alarms.

5. Ancillary Systems

Directly connected to PLC, RTU, paperless recorders, level controllers to complete water level collection + automatic pump control.
