उत्पाद विवरण:
|
| पता लगाया गया गैस: | H2S | माप श्रेणी: | 0 - 500 पीपीएम |
|---|---|---|---|
| सिद्धांत: | विद्युत | संकल्प: | 1 पीपीएम |
| मानक अंशांकन एकाग्रता: | 25 पीपीएम एच2एस | सेवा जीवन: | 2 साल |
| ऑपरेटिंग तापमान आर्द्रता: | -20 डिग्री सेल्सियस ~ + 50 डिग्री सेल्सियस | संरचना: | बेलनाकार प्लग-इन प्रकार |
| प्रमुखता देना: | hydrogen sulfide gas sensor 0-500ppm,portable gas detector for tango tx1,single hydrogen sulfide sensor with warranty |
||
Product Description:

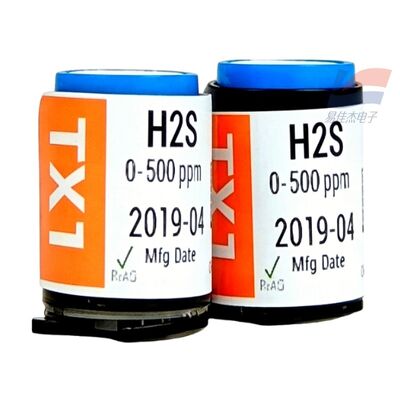

YJJ 17155164 Portable Single Gas Detector Tango TX1 Accessory Sensor - Hydrogen Sulfide (H2S)
Features:
I. Basic Information
Full product name: Tango TX1 Hydrogen Sulfide H2S Electrochemical Sensor, Dual Pack (DUAL PACK)
Part Number: 17155164 (outer packaging complete part number), Sensor Body Part Number: 17154978
II. Compatible Equipment
Only compatible with Tango TX1 single hydrogen sulfide portable gas detector. It is a dedicated replacement sensor for this device and cannot be used with other brands such as Huarui QRAE/PGM series or Draeger etc.
III. Core Technical Parameters
Detected Gas: Hydrogen Sulfide H2S
Measurement Range: 0 - 500 ppm
Principle: Electrochemical electrolyte sensor (6H-H2S dedicated sensing core)
Resolution: 1 ppm
Standard Calibration Concentration: 25 ppm H2S standard calibration gas
Service Life: Original factory specified 2 years (normal temperature clean working conditions)
Operating Temperature and Humidity: -20°C ~ +50°C, 10 - 95% RH (no condensation)
Structure: Cylindrical plug-in type, factory pre-calibrated, after replacement, only simple ventilation calibration is required for use
IV. Packaging Specifications
Part Number 17155164 = 1 package containing 2 independent sensors, dual-pack bulk packaging, suitable for enterprise batch maintenance and procurement.
V. Corresponding Sensor Part Numbers of the Same Series (for convenient matching and shipment) Table
Package Part Number Detected Gas Compatible Model Number of Packages
17155164 H2S Hydrogen Sulfide Tango TX1 2 units per package
17155161 CO Carbon Monoxide Tango TX1 2 units per package
17155162 NO2 Nitrogen Dioxide Tango TX1 2 units per package
17155163 SO2 Sulfur Dioxide Tango TX1 2 units per package
VI. Application Scenarios
Sulfur dioxide leakage detection during oil and gas drilling / pipeline inspection
Restricted space operations in municipal sewage wells, septic tanks, and underground pipelines
Personal protection monitoring of toxic gases in metallurgy, mines, and landfill sites
Single toxic gas alarm for chemical workshops and sewage treatment plants
Specifications:
| detection range | 0~500PPM |
| Accuracy | ±1% full scale |
| Working atmospheric pressure | 1013hPa ± 20% |
| Operating temperature | -10C to 50C |
| Working relative humidity | 0~99%RH(no condensation) |
